Item specifics
  • Package: Yes
  • USB Type: Standard
  • Use: MP3 / MP4 Player,Computer,Mobile Storage,Camera
  • Bundle: Bundle 1
  • Certified: ce
  • Cable Length: 1m
  • Model Number: game capture hdmi
Product Description

2017 New video capture card hdmi , capture HDMI/YPbPr video audio to HDMI/USB Flash Disk directly, no pc required  Free shipping


The HDMI/YPbPr Recorder is a box that records and streams your gameplay up to 1080p. Designed specifically for game lovers, this size capture device comes with on-board H.264 hardware encoder, which guarantees lower CPU usage and smaller file size even for full HD footages, not to mention the file format is extremely easy to work with for post-editing and uploading. The HDMI pass-through function guarantees smooth HD gaming experience even while recording. On top of that, it can be directly connected to streaming platforms; you can even add live commentary when streaming up. From now on, sharing your legendary matches is no longer a dream.
 HDMI/YPbPr Recorder provides the flexible connectivity with HDMI & Component inputs, which makes it applicable to all the mainstream gaming platforms, including Xbox 360 & One,  Even better, it\'s no PC enquired, Simply 1 click on the Record Button, 1080p recording is done right away.
.1080P recording with one click, no PC enquired. You only simple insert one USB Flash disk to get it anywhere, anytime.
.Bring it out of your room and share the gameplay and fun with your friends anywhere.
.Easy to use, no any set-up. You just click RECORD button to record your gameplay, and re-click to stop recording.
.With 1080P HDMI by through, you can play HD gameplay when you\'re recording it.
.With extral audio input, allows you record your own live voice from microphone with gameplay video together.
.Interface: USB 2.0 host for USB Flash disk or USB hard disk
.Video Input: Digital / HDMI, Analog / Component Video.
.Audio Input: Digital / HDMI, Analog / RCA Audio L/R, 3.5mm Line In, 3.5mm Microphone In.Mic In and Line In only can use for component video input, don\'t support HDMI input)
.Video Output: Digital / HDMI (Pass-through from HDMI or Component).
.Audio Output: Digital / HDMI(Pass-through from HDMI or Audio RCA L/R Input), Analog / 3.5mm Stereo (Pass-through from HDMI or Audio RCA L/R Input)
Application Connections with Game Consoles
.HDMI:Xbox 360, Xbox One, PS4
.Component:  Xbox 360
Hardware Extra
.Codec: Hardware MPEG4 encoder
.User Interface: On-board Hot Button for one-click recording / streaming, LED indicator for working sratus.
.Dimension: 110 * 75 * 27 mm
.Weight: 135g
.Storage Media: USB Flash Disk, Portable Hard Disk (exFAT format is not supported)
.Input Resolution / Pass-through:
  720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i),
  1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
.Capture Resolution:
  720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i),
  1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
.Record Format: Video / AVI MPEG4, Audio / AAC Stereo
.Record Quality: Max 18Mbps@1080P 30fps
.Record File: Max 2GB/per file
.Record Place: Max 140MB/minute, 8.4GB/hour
.Power Supply: DC 5V 2A

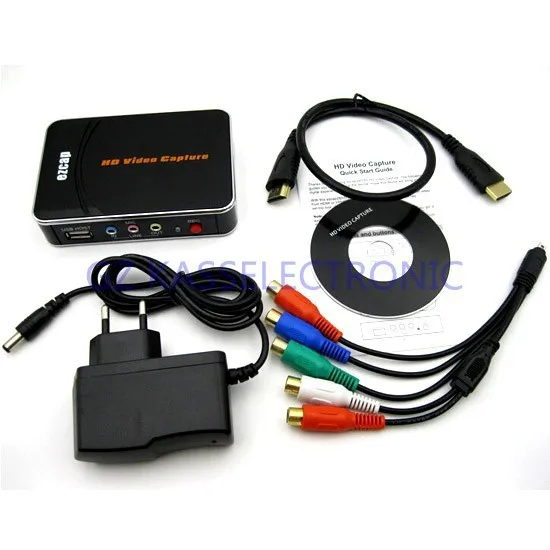

.1x1080P HDMI/YPbPr Recorder
.1xComponent video audio connection cable
.1xHDMI cable
.1xPower supply
.1xVideo editing software CD

shipping_01. Alipay, West Union, TT,  credit cards are accepted through secure payment processor ESCROW.shipping_03.We don\'t offer any local pickups. We  ship to most countries around the world. Order will be shipped out with 1-7 business day once the payment is cleared.

.We offer  item can free shipping by China Post Mail or Hongkong  Register Mail. Usually, it need 15-25 business days to the major destination of the world.

.UPS, DHL,  Fedex or EMS are also available after confirm with seller. We would send out the order package in time so as to make you receive it on time. .Before sending, all packages will be checked again to ensure their perfectibility. Usually, the lead-time is 2-5 days  to the major worldwide countries.

.To avoid any custom duties question, We will mark our package as "gifts" and try our best to help if you has any especial requirement, please notice  when you ordershipping_05.To avoid any quality problem, all merchandise are in good quality and under strict examination before shipped

.All merchandise warranty for quality in 1month after buyer received and we will supply repair it free. The returning shipping should be paid by buyer.

.Please contact us first when you want to return. Men made defects is not warranty.shipping_07.Please kindly help to leave Positive feedback and we will do the same for you, if you are satisfy with the deliver merchandise.

.Please feel free to contact us first, if you are not satisfy with the goods. we will do our best to solve the question.

.If you are a re seller  who want buy large quantity, please send email to us. We will supply you our competitive price and service for you.

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.5kg (1.10lb.)
  • Package Size: 15cm x 15cm x 10cm (5.91in x 5.91in x 3.94in)
