Item specifics
  • Packing: Carton Box
  • Package: Yes
  • Gender: Female-Female
  • Connector A: HDMI
  • Connector B: HDMI
  • Type: HDMI Cables
  • Application: Multimedia
  • Feature: HMDI1.4
  • Model Number: 2x4 HDMI splitter
  • Shielding: Non-Shielded
  • Model: 2x4 HDMI splitter
  • HDMI resolution: up to 3840*2160/30Hz
  • Support audio color format: 8/10/12 / 16bit
  • Support audio format: DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD
  • Connector Type: HDMI
  • Connector Color: Gold
Product Description

4K*2K HDMI Matrix 2x4 Switcher Splitter 2 in 4 out HDMI Converter Adapter With Remote Control Suports 4K 3D 1080p HDMI 1.4

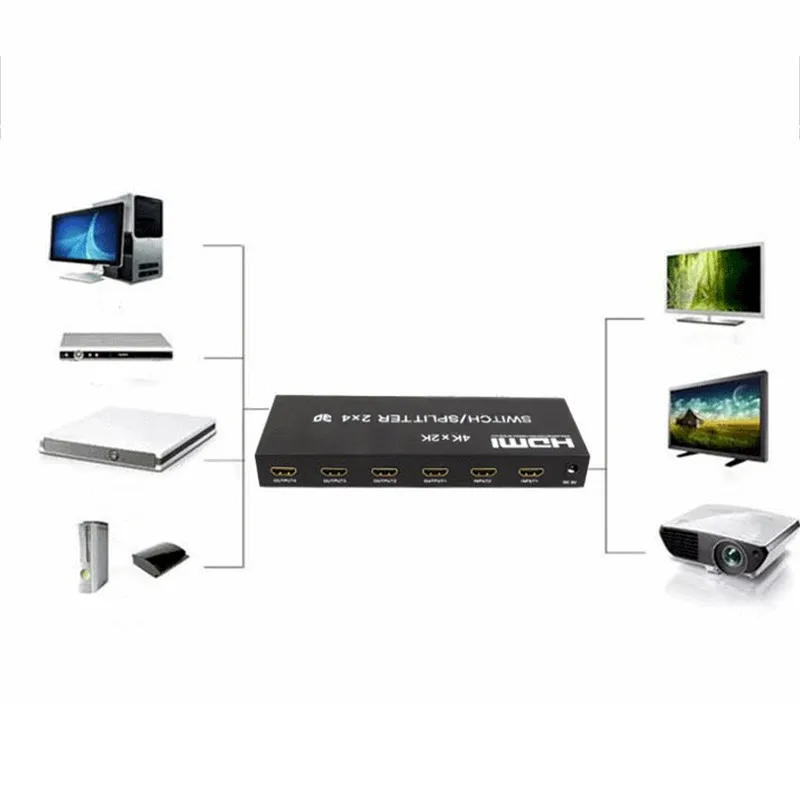

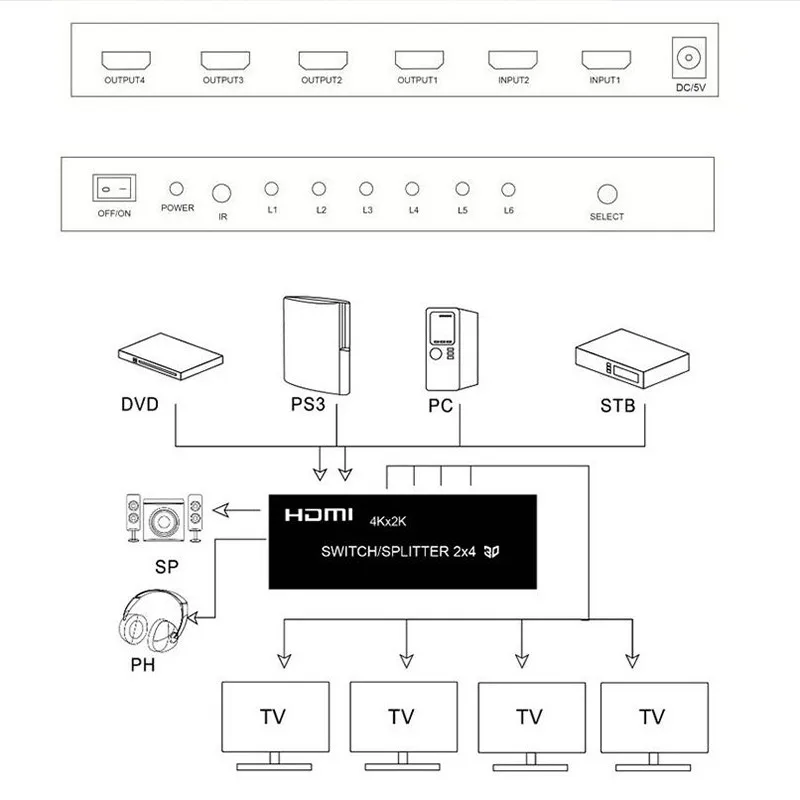

The 2X4 HDMI splitter connects two HD sources to four HD display terminals.
It can easily be two high-definition signal source generated by the high-definition signal assigned to four high-definition signals to support high-definition TV or projector.
In addition, the HDMI output of the product can be amplified by the HDMI signal to increase the output signal transmission distance. Between these two sources can be through the button or the remote control arbitrary switch.
The product can support high-definition video format resolution up to 3840 * 2160 / 30Hz.
Support 3D, 4Kx2K


HDMI resolution : 24/50 / 60fs 2160P / 1080p / 1080i / 720p / 576p / 576i / 480p
Support audio color format: 8/10/12 / 16bit
Support audio format : DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD
Maximum transmission rate :3.4 Gbps
Input and output TMDS signal : 0.5 to 1.5Volts p-p
Input and Output DDC Signal : 5Volts p-p (TTL)
Input cable length: 8m HDMI AWG26
Output cable length : ≤ 8m AWG26 HDMI standard cable
Maximum operating current: 3.6A
Power Adapter Specifications : Input: AC (50Hz, 60Hz) 100V-240V; Output: DC12V / 5A
Operating Temperature Range : (-15 ° C to + 55 ° C)
Operating Humidity Range : 5 to 90% RH (No Condensation)
