Item specifics
  • Package: Yes
  • Brand Name: LEORY
  • Gender: Male-Female
  • Connector A: HDMI
  • Connector B: HDMI
  • Packing: Polybag
  • Type: HDMI Cables
  • Feature: None
  • Outer Diameter: Standard
  • Model Number: HDMI
  • Shielding: Non-Shielded
  • Application: Other
  • Connector Color: Gold
  • Connector Type: Stereo
  • Gender: Other
  • Type: Universal
Product Description

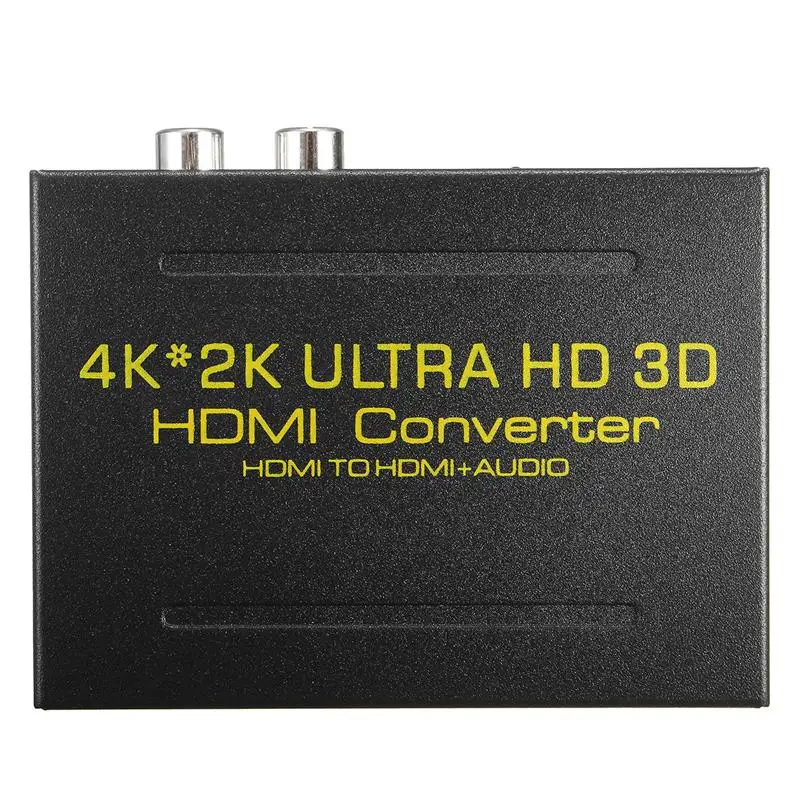

This HDMI to HDMI converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF audio out port.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation,
school and corporate training environments.
This device can extract the digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through
its RCA style L/R analog output AND SPDIF output at the same time.
The SPDIF output can support 5.1CH audio including Dolby Digital 5.1CH and DTS 5.1CH;
it does NOT support for Dolby Digital Plus and PCM 5.1CH and beyond.

Specifications:

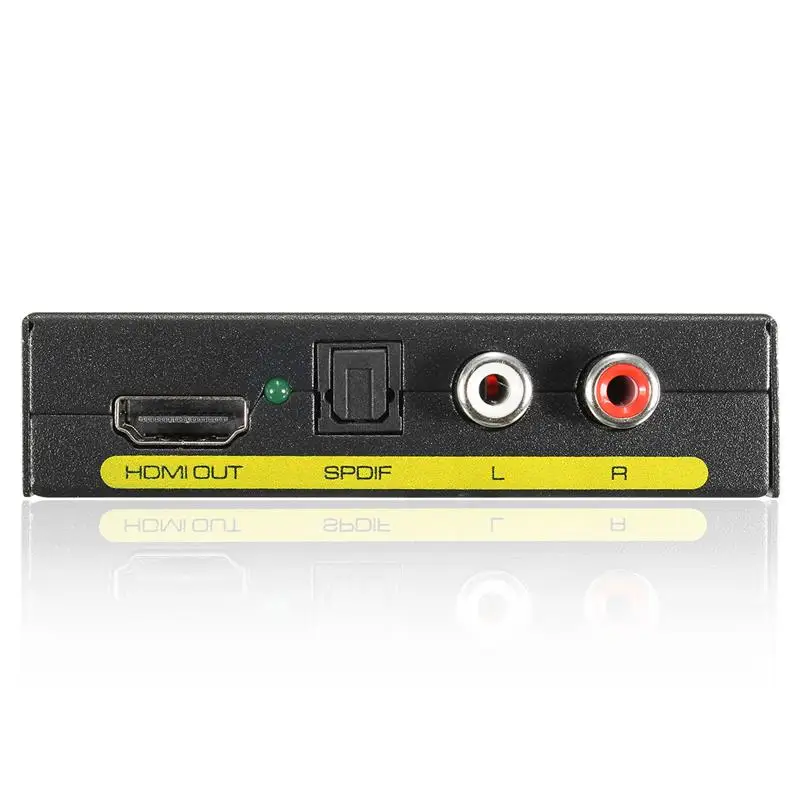

1.One HDMI input converted to one HDMI+ Audio (SPDIF+R/L)output
2.Output audio support: SPDIF+R/L analog Audio Output
3.Support 3D
4.With HDMI CEC function
5.Support deep color 30 bit 36 bit
6.Input Resolution: up to 4k*2K 1080P(50/60Hz)/720P/480P
7.Support blue ray 24/50/60 fs/HD-DVD/xv-YCC
8.Digital audio format as DTS-HD for Dolby true HD/LPCM 7.1/For Dolby AC3/DSD
9.Support signal retiming
10.HDMI to achieve the synchronization of audio signal separation,there are pass 2.1CH/5.1CH three kinds of audio mode option
11.LED indication: when source or sink is working, LED relative to is light.
12.Supports For Apple TV and various Blu-ray player
13.No loss of quality
14.Installs in minutes
15.Need DC5V/1A power supply

Operating and Connecting:
1. To use one hdmi cable to connect the HD Source with the input HDMI port.
2. To connect the converter hdmi output port with the HD Display.
3. To use one audio cable to connect the converter R/L port with the audio equipment.
4. To use the optical cable to connect the SPDIF port with the audio equipment.
5. To connect the converter with 5V DC power adaptor.

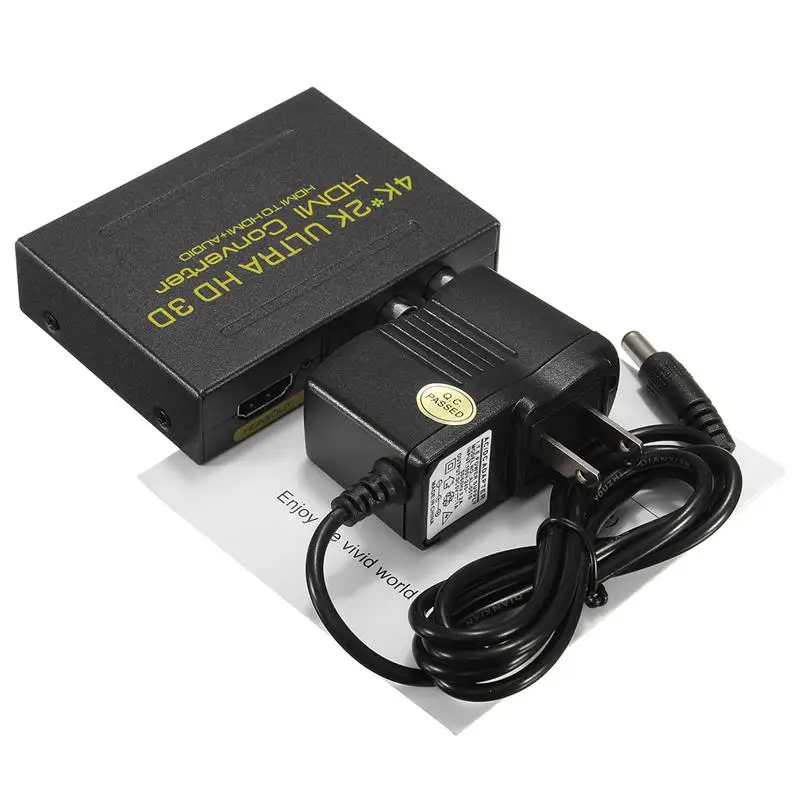

Packing Included:
1* HDMI TO HDMI+Audio (SPDIF+L/R)
1* DC5V Power Adaptor(we will send you a free adapter accordong to your country)
1* English User Manual






















Packaging Details
  • Unit Type: piece
  • Package Weight: 0.325kg (0.72lb.)
  • Package Size: 19cm x 15cm x 7cm (7.48in x 5.91in x 2.76in)
