Item specifics
  • Packing: Carton Box
  • Package: Yes
  • Gender: Female-Female
  • Type: Optical Fiber Cables,Speakon
  • Model Number: 084
  • Connector A: HDMI
  • Connector B: HDMI
  • Application: Multimedia
  • Brand Name: EMK
  • Shielding: Non-Shielded
  • Gender: Female-Female
  • Connector Type: Composite
Product Description
Dear customer,
Thank you for choosing our products. We focus on producing professional, high-quality, cost-effective high-tech products and providing quality services for your HD digital life.
Introduction

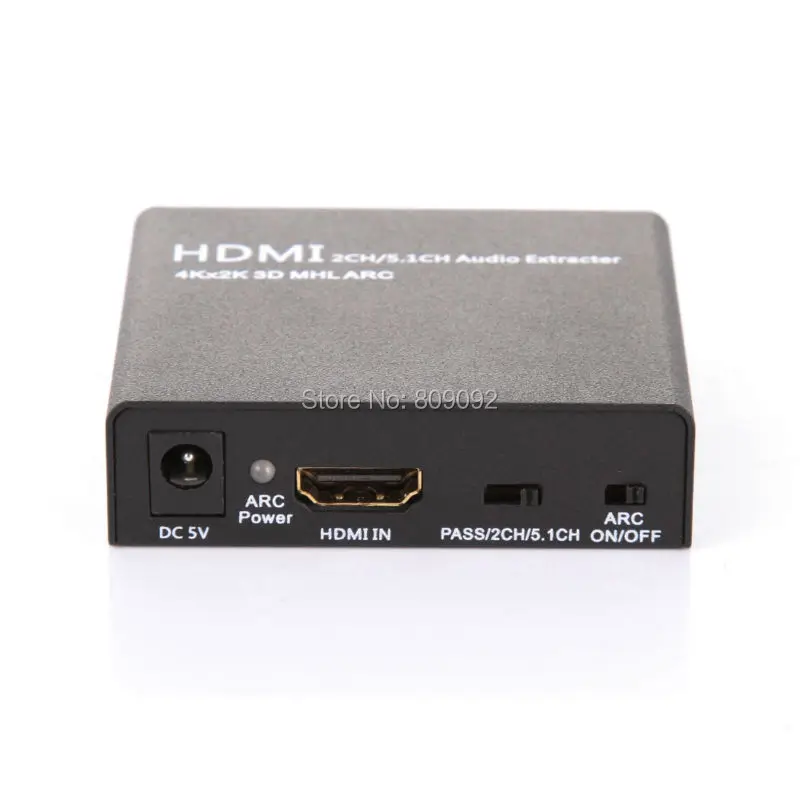

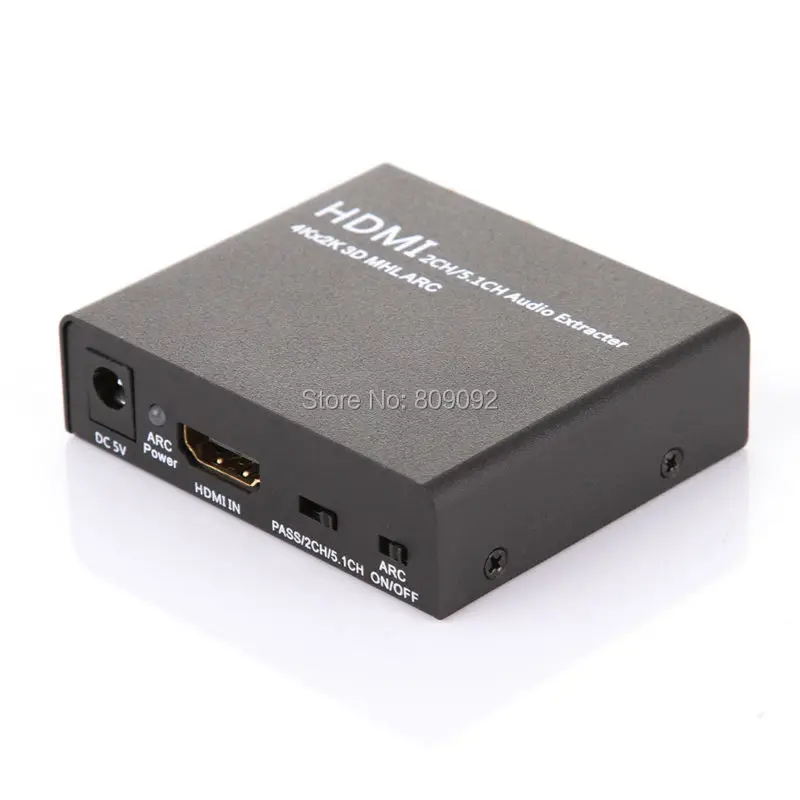

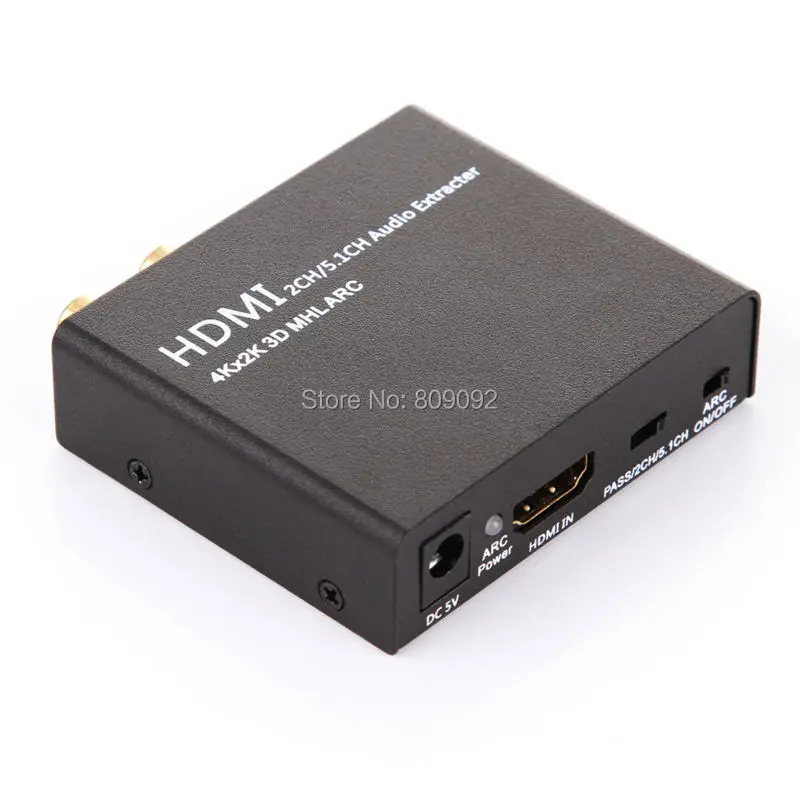

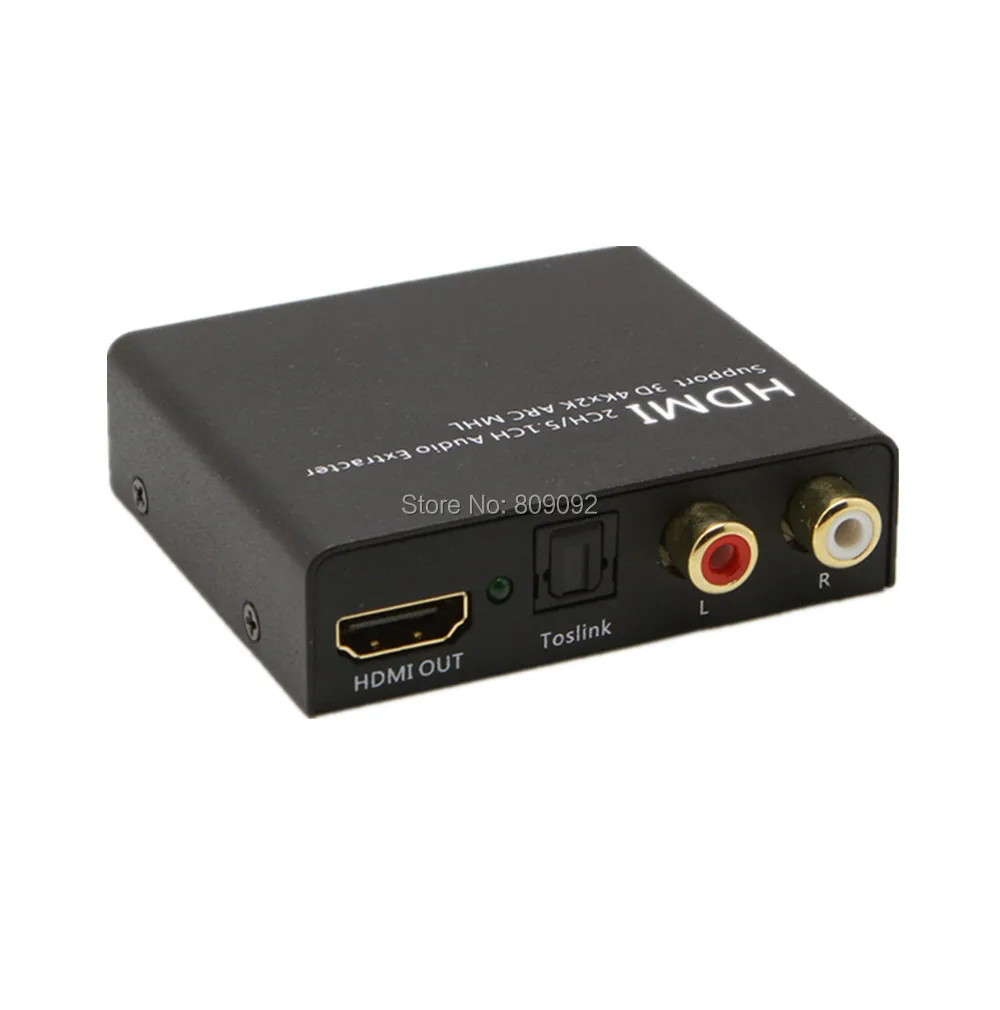

This is a high performance multi-functional HD audio return extractor. This extractor can extract the audio signals among the HD signals to the power amplifier system. It also can turn back the local programs on the TV(Such as the current smart TV can play HD audio and video programs stored in the U disk and other mobile storage devices) and audio signal of High Definition TV program received by wireless  or wired to the sound system, allows you to have high quality audio enjoyment.
This switcher also supports MHL function which can connect your mobile phone that have MHL function to the TV, allows you to browse pictures, video audio files in your mobile phone on the high definition devices such as TV or projector.
LY785 (6)LY785 (5)LY785 (4)LY785 (3)
Features
The output interface supports Audio Return Channel(ARC)
Supports MHL function,it can connect the mobile phone supports MHL function to the TV
Can charge mobile phones when using the MHL function
Support audio EDID selection function(2CH,5.1CH,PASS)
MHL 2.0 versions
HDMI v1.4 supports: 4k*2k@30Hz - -3D
Supports Deep Color 24/30/36  HDMI output supports CEC channel
Support digital audio format, DTS-HD/Dolby-True HD/AC3/DTS/DSD
Specifications
Transmission Bandwidth...........................300MHz/10.2 Gbps
Input Port..............................................1*HDMI Female
Output Port.............................................1*HDMI Female
Output Resolution...............480~1080p50/60,4k*2k@24/30,VGA~UXGA
HDMI Input Cable....................................1080p/12bits(15m)
HDMI Output Cable...................................1080p/12bits(15m)
Power Supply...............................................DC 5 V/1A
Dimensions................................ 70mm(L)*60mm(W)*20mm(H)
Weight.......................................................105g
Chassis Material.............................................Metal
Operating Temperature......................0°C~40°C/32°F~104°F
Storage Temperature......................-20°C~60°C/-4°F~140°F
Relative Humidity..........................20~90%RH(Non-condensing)
Power Consumption...........2W (Will increase when use the MHL function)
LY785 (2)LY785 (1)1 (2)1 (1)
ARC Application Instructions
 If your TV is smart TV, how to enjoy the 5.1channel audio when you plug the U disk directly in the TV to play the HD video? According to the traditional way, it is necessary to be decoded by using the Toslink / coaxial digital audio output port on the TV and connecting it to the amplifier. Now that is simple, the digital audio will directly be turned back to the amplifier through the HDMI cable that connected TV and the switcher to decode the digital audio 5.1 channel.
l In European and American countries, a lot of HD TV programs are directly received into the TV via wireless signal through antennas. If the TV without Toslink / coaxial audio output interface (a lot of TV with HDMI but no digital audio interface), it will be unable to decode multi-channel HD audio signal. At this point, the HDMI ARC function can come in handy. It use HDMI input cable to reverse the digital audio to the amplifier through this switcher to decode and play it.
Notes
When use a laptop or desktop computer to connect this product, you need to set the computer display mode to copy, expand, or only projector mode.
Accessories

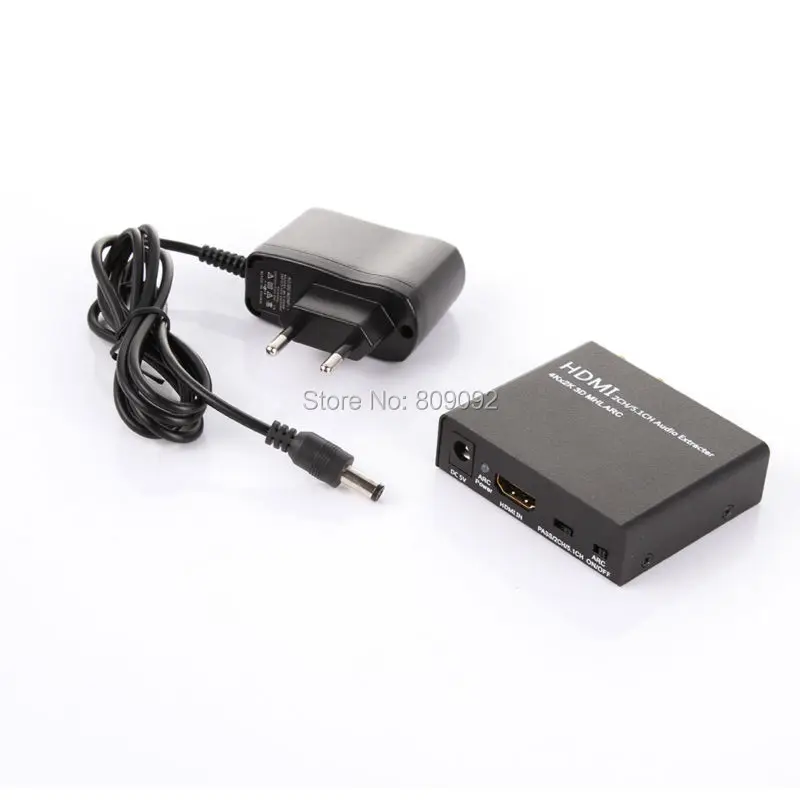

1 X HDMI HD Audio Return Extractor

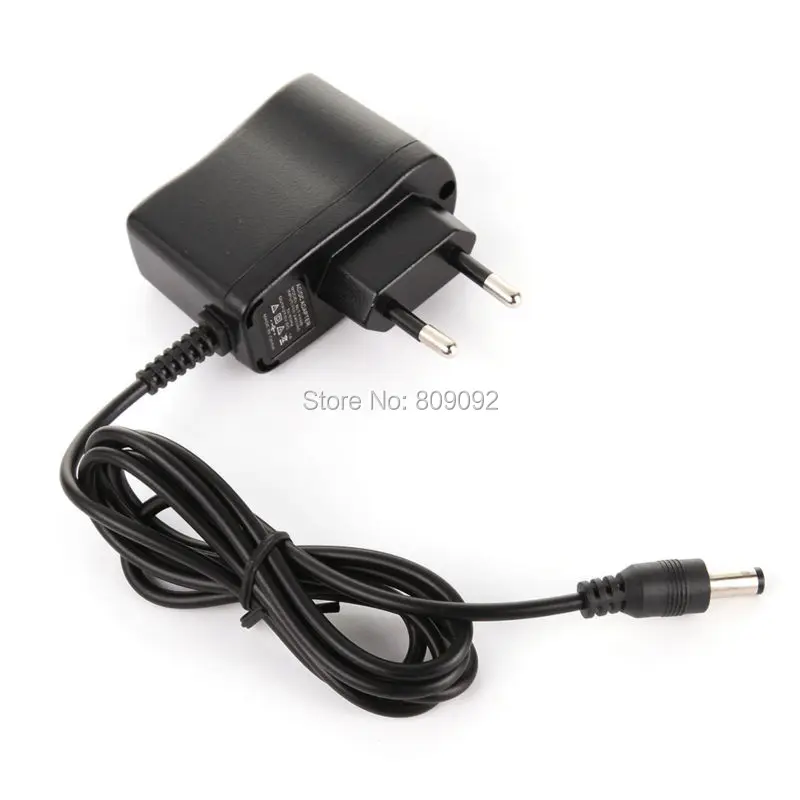

1 X DC 5V/1A Power Adapte
1 X User’s Manual



Packaging Details
  • Unit Type: piece
  • Package Weight: 0.27kg (0.60lb.)
  • Package Size: 25cm x 12cm x 5cm (9.84in x 4.72in x 1.97in)
