Item specifics
  • Connector B: RCA,HDMI
  • Gender: Male-Male
  • Application: Multimedia,Camera,TV BOX,Monitor,Computer
  • Model Number: DMI to AV/RCA and S-Video Converter
  • Package: Yes
  • Brand Name: BrankBass
  • Connector A: HDMI
  • Type: AV Cables,Speakon,HDMI Cables,Audio Line
  • Shielding: Combination
  • Outer Diameter: 128x89x56mm
  • Packing: Retail box
  • Feature: HDMI To Composite RCA
  • Style Name: HDMI to S-video
  • Product Name: HDMI to composite (RCA CVBS AV)
  • Feature 1: 1080P HDMI To AV/S Video Adapter
  • Feature 2: CVBS Video Converter
  • Feature 3: HDMI To AV/S Video Adapter
  • Type: hdmi to s-video
  • Resolution: 1920*1080
  • Input: HDMI x 1
  • Connector Type: Composite
Product Description

Output:Composite x 1, S-video x 1
Status:In Stock

2016 HDMI To Composite RCA & S-video Converter Scaler 720p 1080p with Adapter

S-Video to HDMI Converter

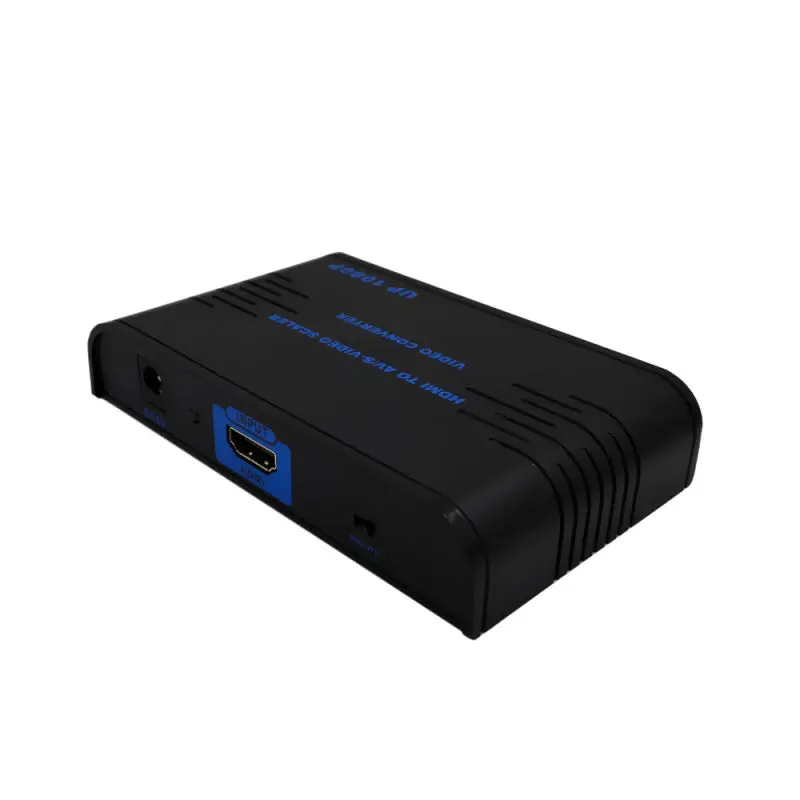

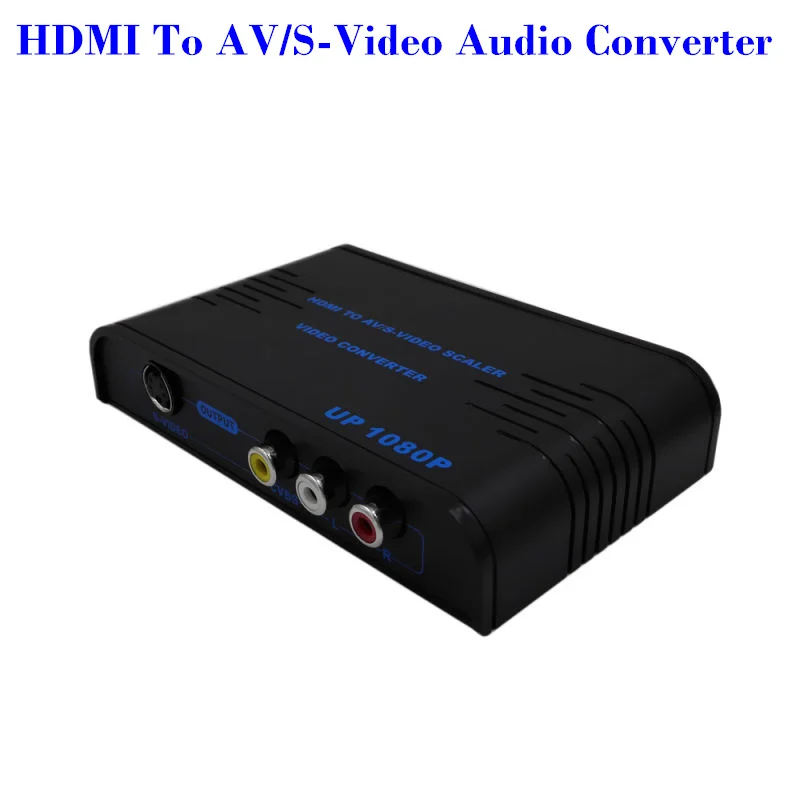

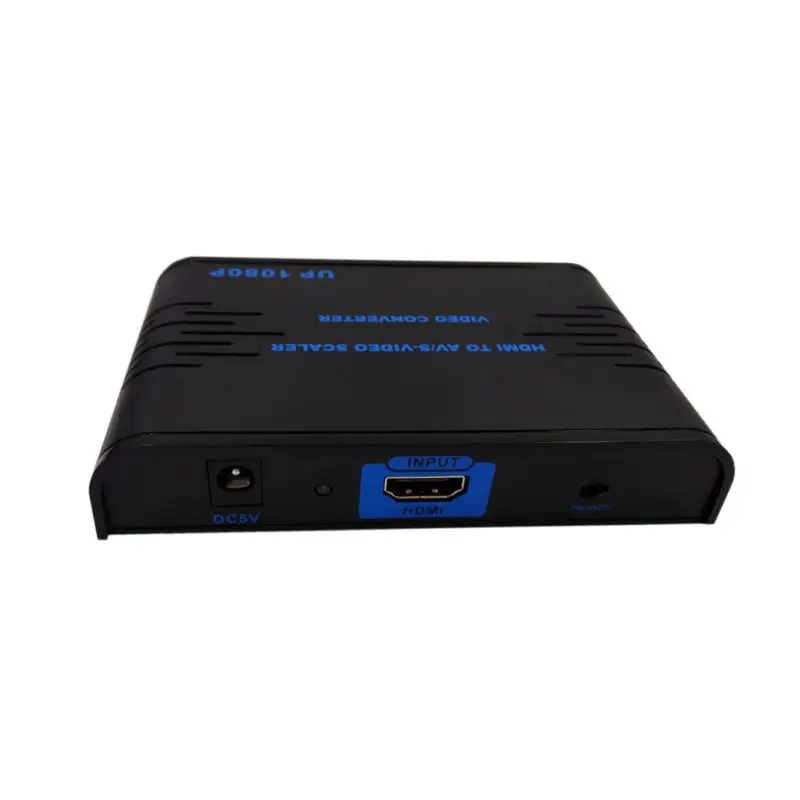

This converter box is designed to convert HDMI to either Composite Video or S-Video. It allows the devices only equipped HDMI output to be connected to analog TV. It is mostly applied in AV equipment testing.

Features:

Input HDMI Resolution: 480p(60Hz),576p(50Hz),720p(50Hz/60Hz),1080i(50Hz/60Hz),1080p(50Hz/60Hz);

Output Signal: Composite Video (1.0Vpp),S-Video(Y:1.0Vpp,C:0.3Vpp);

Output Video Systems: PAL/NTSC;

Output Video Impedance: 75Ω;

Compatible with HDMI 1.3 and HDCP;

Power Supply: DC 5V;

Working Temperature: -25°C 75°C;

Working Humidity: 10%-60%

  • Convert HDMI to S-video or composite (RCA CVBS AV), with audio support;
  • Plug-n-play, easy to install in seconds, no need for settings;
  • Video input: HDMI, 1080p FullHD, 1080i, 720p, 576p/i, 480p/i
  • Video output: S-video or composite (RCA CVBS AV), 576p/i, 480p/i
  • Audio output: R/L analog
  • Video input: HDMI, 1080p Full HD, 1080i, 720p, 576p/if, 480p/if
  • Video output: S-video or composite (RCA CVBS AV), 576p/if, 480p/if
  • Audio output: R/L analog

Packing Details:

1 x Convert HDMI to S-video

Video Converter hdmi to av s-video Digital Audio Video Converter HDMI to AVRCA HDMI to CompositeS-video converter HDMI To Composite RCA





Packaging Details
  • Unit Type: piece
  • Package Weight: 0.35kg (0.77lb.)
  • Package Size: 15cm x 7cm x 9cm (5.91in x 2.76in x 3.54in)
