Item specifics
  • Application: Projector,Multimedia,Television,TV BOX,Monitor
  • Connector B: HDMI
  • Feature: HMDI1.4
  • Shielding: Non-Shielded
  • Packing: Carton Box
  • Package: Yes
  • Gender: Female-Female
  • Connector A: HDMI
  • Type: HDMI Cables
  • Model Number: HDSW0058
  • Brand Name: VOXLINK
  • HDMI Vertiong: 1.4
  • Type: HDMI Switcher
Product Description

aeProduct.getSubject()

3 port HDMI SWITCH 3x1 converter Support audio video switcher 720p 1080i 1080p

3-Port HDMI Switch:

The  3- Port  HDMI switch allows Up to 3 HDMI ports to be switched to a single display

terminal via remote  control  or  buttons  on  unitl.  The switcher can also placed at the

end of a long HDMI cable to regenerate the HDMI signal. This HDMI  Switch  support

video formats including  720p,1080i,1080p

aeProduct.getSubject()

FEATURES

l Support 2.5Gbps data rate for tmds clock up to 250MHz
l Support HDMI1.4A
l Support 3D
l Supports highest video resolution 1080p/60Hz
l Support UXGA,WUXGA
l Support 8/10/12 bit  deep color
l Support AWG26 HDMI standard cable,Input up to 20metres ,output up to 10metres
l Supports single high definition display for multiple sources, such as DVD Players
and Stellite Receivers, Digital Projectors, A/V Receivers, Set Top Boxes
l Remote Control for operational flexibility and easy to control
l DC5V/1A power supply


SPECIFICATIONS:
HDMI version......................................................................HDMI 1.4A
HDMI resolution ......................................................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format .............................................................. 8/10/12 bit deep color,
Support audio format............................................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth......................................................................250MHz
Max baud rate......................................................................2.25Gbps
Input cable distance......................................................................≤20m AWG26 HDMI standard cable
Output cable distance......................................................................≤10m AWG26 HDMI standard cable
Max working current......................................................................500mA
Power adapter format..Input.........................................................AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range.............................................................(-15 to +55)
Dimension (L x W x H) ......................................................................128x53x20 (mm)
Weight......................................................................140g

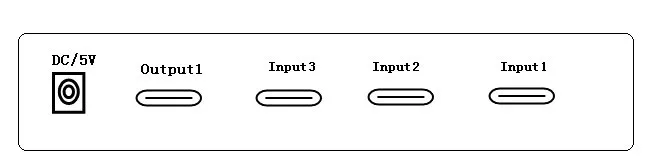

Physical Connection Showing Picture
aeProduct.getSubject()
aeProduct.getSubject()
1: Connect  3 HDMI cables from HDMI source device into HDMI switch input.
2: Connect  1 HDMI cable from HDMI source device into DOMI switch output.
3: Connect 5V/1A power adapter to the HDMI switch .

The Package includes:

1. HDMI Switcher

2. IR Remote Control

3. 5V DC Power adapter

4. User  Manual


aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.5kg (1.10lb.)
  • Package Size: 20cm x 15cm x 10cm (7.87in x 5.91in x 3.94in)
