Item specifics
  • Type: Coaxial Cables
  • Model Number: hdmi switch
  • Gender: Male-Female
  • Connector A: HDMI
  • Connector B: HDMI
  • Outer Diameter: 5-port hdmi switch
  • Packing: Polybag
  • Brand Name: UNSTINCER
  • Application: Multimedia
  • Shielding: Non-Shielded
  • Package: No
  • is_customized: Yes
  • hdmi switch 5x1: hdmi switch 5 port
  • hdmi switch 5 portas: hdmi switcher 5 port
  • hdmi switch audio: hdmi switcher
  • hdmi switch: hdmi switch 5 port remote
  • Gender: Male-Female
  • Connector Color: Gold
  • Connector Type: Composite
Product Description

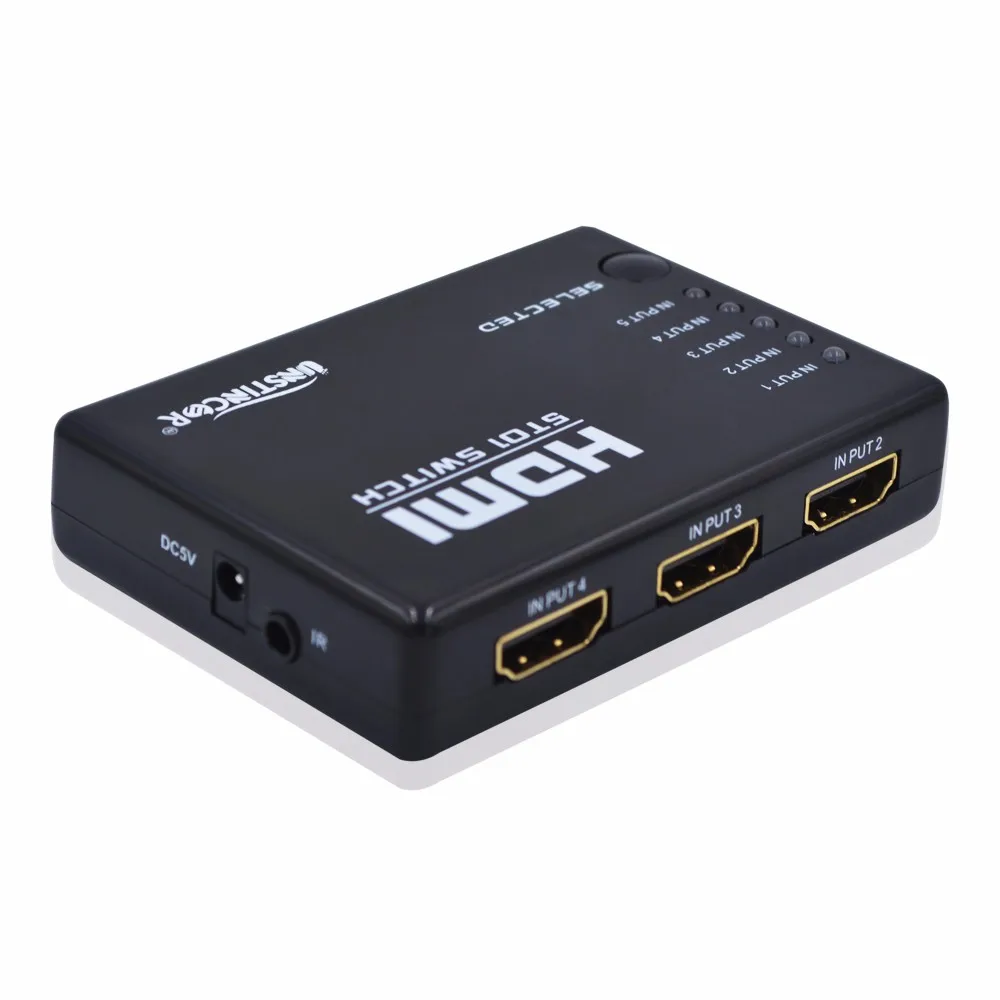

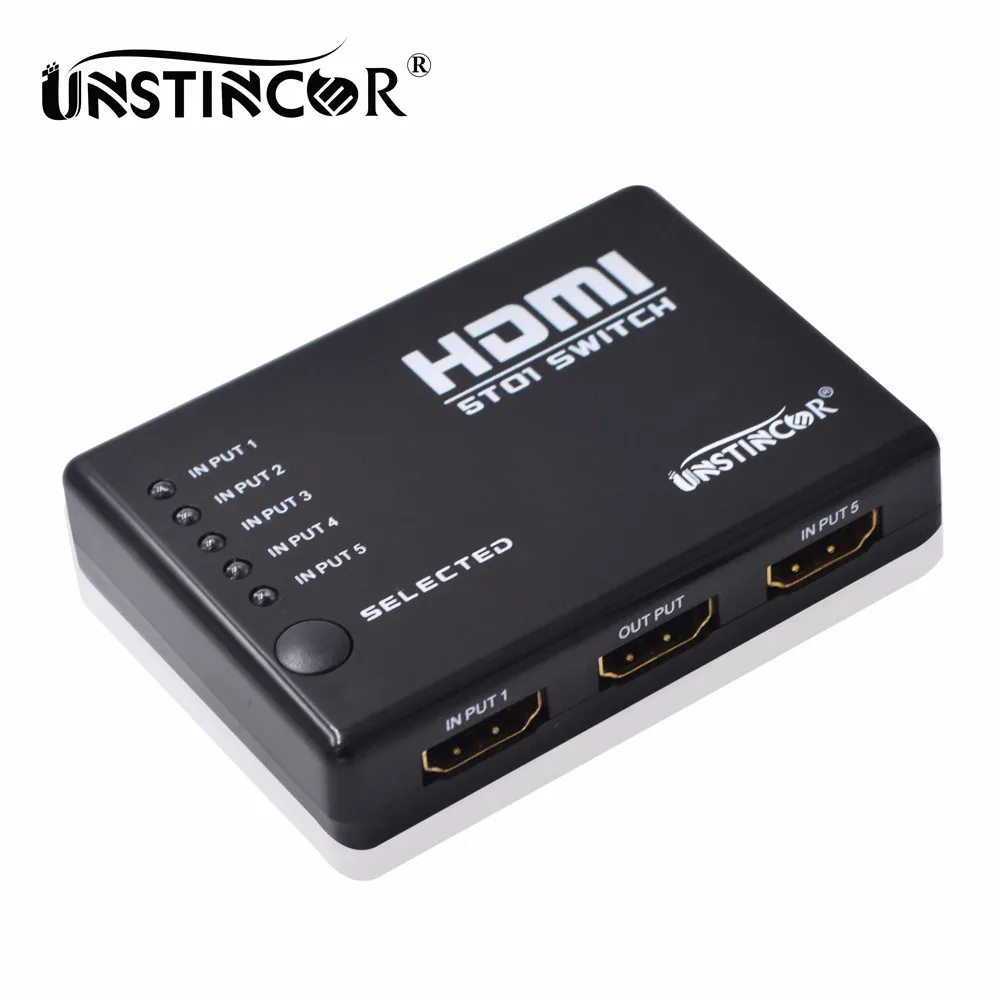

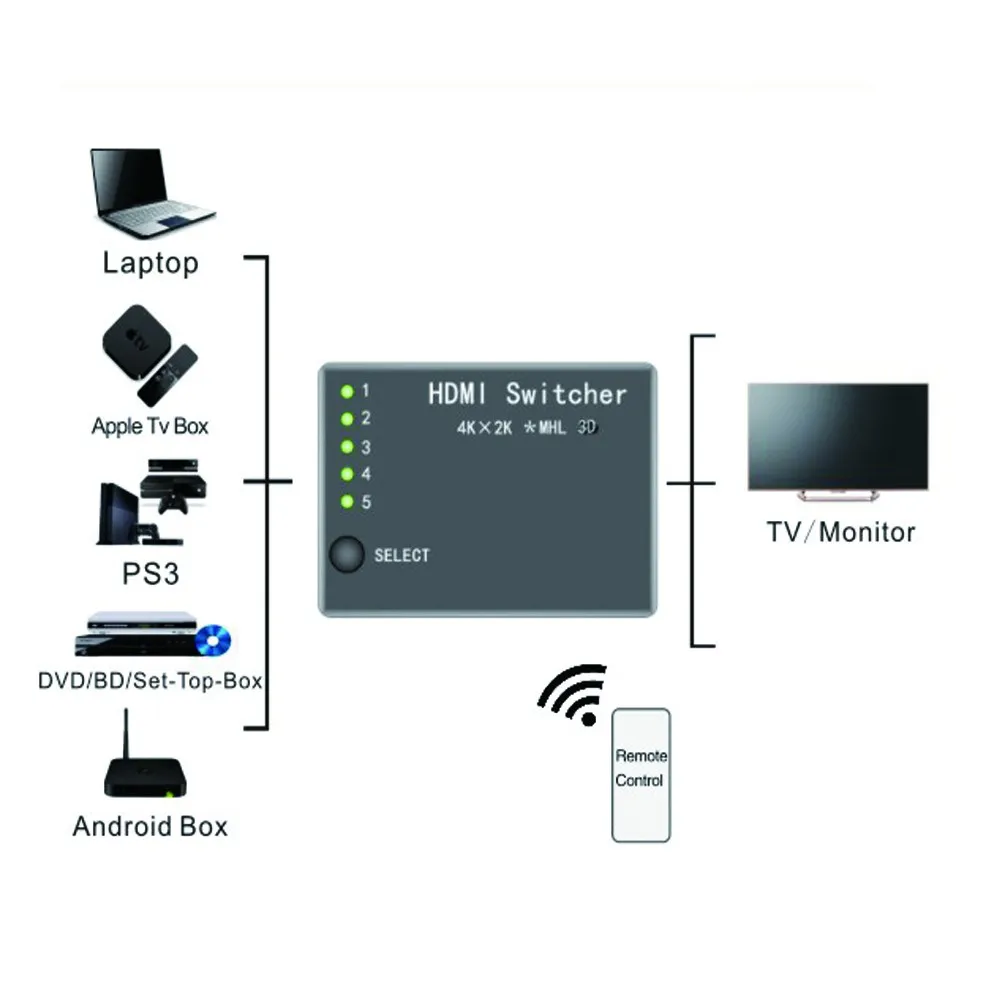

This HDMI switcher can connect high definition video and digital audio of 5 HD signal  sources (for example HD-DVD, Set-Top-Box, PS3, Xbox360 etc) to 5 HDMI input ports at the same time and output high definition video and audio signal to an HD monitor via the output port of the switcher. You can easily switch among the 5 HDMI input signals to one display by hand or remote control.


  • Support HDMI 1.3b. Support HDCP.
  • Extend all HDMI devices by regenerating HDMI signal.
  • Adaptive receiver equalization to accommodate to different input cable lengths.
  • Quick installation, easy operation.
  •  Multifunction on switching: intelligent switching or manual switching.
  • Come with remote control. External infrared receiver to solve the problem of the unavailability of remote control due to the poor location
  • Input Video Signal:0.5-1.0 volts p-p
  • Input DDC Signal:5 volts p-p (TTL)
  • Maximum Single Link Range:1920X1200, 1080P
  • Output Video:HDMI1.3b+HDCP1.0/1.1 DVI1.0
  • VGA:640x480,800x600,1024x768,1920x1200
  • DTV/HDTV:480i/576i/480p/576p/720p/1080i/1080P
  • HDMI Compliance:HDMI 1.3b
  • Frequency:Up to225MHz
  • Vertical Frequency Range:50/60Hz
  • Video Amplifier Bandwidth:2.5Gpbs/225MHz
  • Resolutions(HDTV):Interlaced(50&60Hz),480i,576i,1080i
  • Progressive(50&60Hz),480p,576p,720p,1080p
  • Size(H-W-D):81x58x19 mm
  • Operating Temperature:0 Cto +70 C
  • Operating Humidity:10% to 85 % RH (no condensation)
  • Storage Temperature:-10 Cto +80 C
  • Storage Humidity:5% to 90 % RH (no condensation)
  • Power Requirement:5W/DC 5V 1A
Package Contents:
1* 5-Port HDMI Switch
1* IR Remote
1*IR Receiver
1*  User Manual
aeProduct.getSubject() hdmi switch 5x1 (2) aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()



Packaging Details
  • Unit Type: piece
  • Package Weight: 0.08kg (0.18lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
