Item specifics
  • Brand Name: VOXLINK
  • Application: Multimedia
  • Gender: Female-Female
  • Model Number: HDSP0077
  • Packing: Carton Box
  • Outer Diameter: 1X8 HDMI 2.0 splitter
  • Connector Color: Gold
  • Connector A: HDMI
  • Connector B: HDMI
  • Type: Coaxial Cables
  • Connector Type: HDMI
  • Shielding: Non-Shielded
  • Package: Yes
  • HDMI version : HDMI 2.0
  • HDCP version : HDCP 2.2
  • HDMI resolution: up to 3840*2160/60Hz
  • Support video format : 8/10/12bit Deep color
  • Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
  • Max bandwidth: 600MHz
  • feature : support 3D 4K
Product Description



VOXLINK 3D 4K 1X8 HDMI 2.0 splitter 1 In 8 Out HDMI Switcher Splitter Support HDCP2.2,IR extension EDID mangement 3840X2160/60Hz








VOXLINK 3D 4K 1X8 HDMI 2.0 splitter 1 In 8 Out HDMI Switcher Splitter Support HDCP2.2 with IR extension EDID mangement 3840X2160/60Hz


This splitter supports EDID management function, comes with eight kinds of EDID mode, the users can choose according to their own needs. In addition, this product is also built-in IR extension function, can work with our hdmi 2.0 repeater which has IR-RX receiving the IR command to control the source



FEATURES

  • Support HDMI 2.0 ,HDCP2.2
  • Support 3D video format
  • Support high resolution up to 3840X2160/60Hz
  • Support highest rate of 6 G and TMDS clock can be up to 600 MHz
  • Support 8/10/12 bit deep color
  • Support AWG26 HDMI standard cable:

    when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.

    when the resolution is 4K, input up to 8 meters, output up to 8 meters.

  • Support one single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.
  •  Built-in IR extension function
  • Remote control the source (via the IR-RX of HDMI repeater which splitter works with to receive the IR command)
  • Support serial port online upgrade
  • Support EDID management
  • 5V/3A power adapter

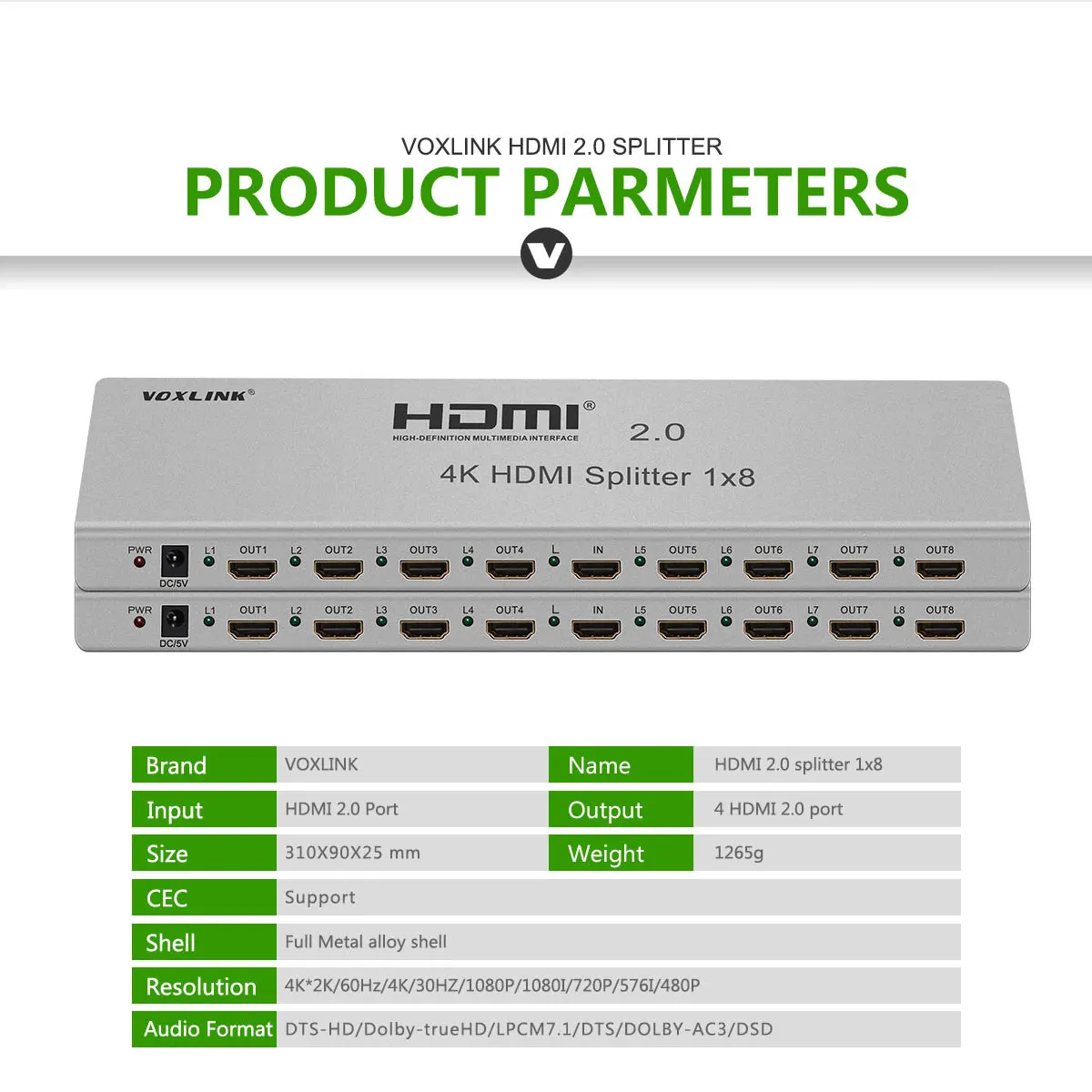

Specifications:

HDMI version  ………………………………………………………………………………. HDMI 2.0

HDCP version  ……………………………………….……………………………………. HDCP 2.2

HDMI resolution ……………………………….. ……….. ……….. …………up to 3840*2160/60Hz

Support video format ………………………………..…………………………8/10/12bit Deep color

Support audio format………………..………. …….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth………………………………………………………………………………….600MHz

Max baud rate……………….…….………………….…………………………………………..6Gbps

Input cable distance.…………………………….(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable

Output cable distance…………………………(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable

Max working current………………………………………………………………………………....2 A

Power adapter format………………….….input AC (50HZ, 60HZ) 100V-240V; output: DC5V/3A

Operating Temperature range……………………………..…………….………………(-15 to +55)

Dimension (L x W x H)………………...............…………..……………………….310x90x24 (mm)

Weight…….…..…………………….……………………854g

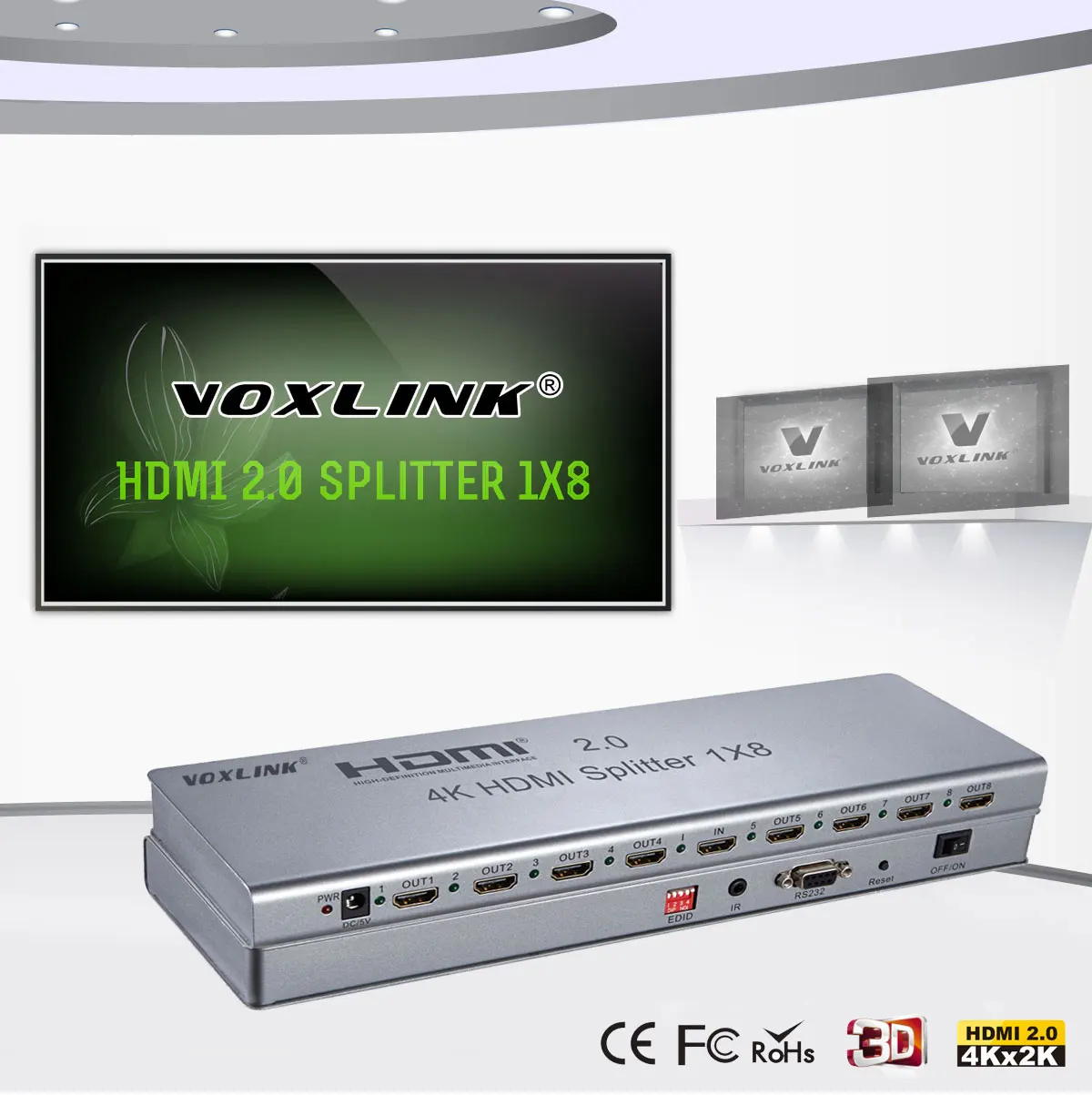

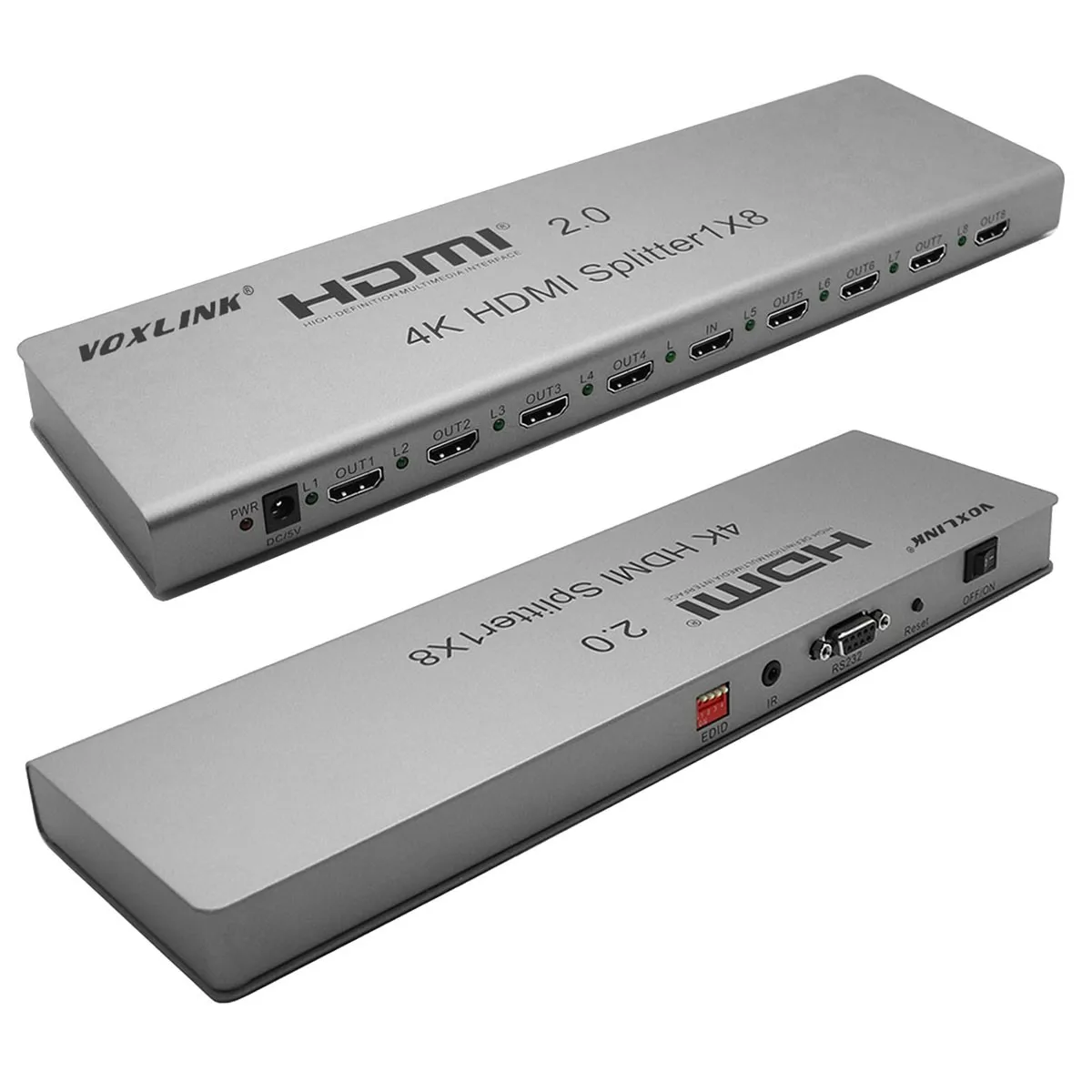

Product photos

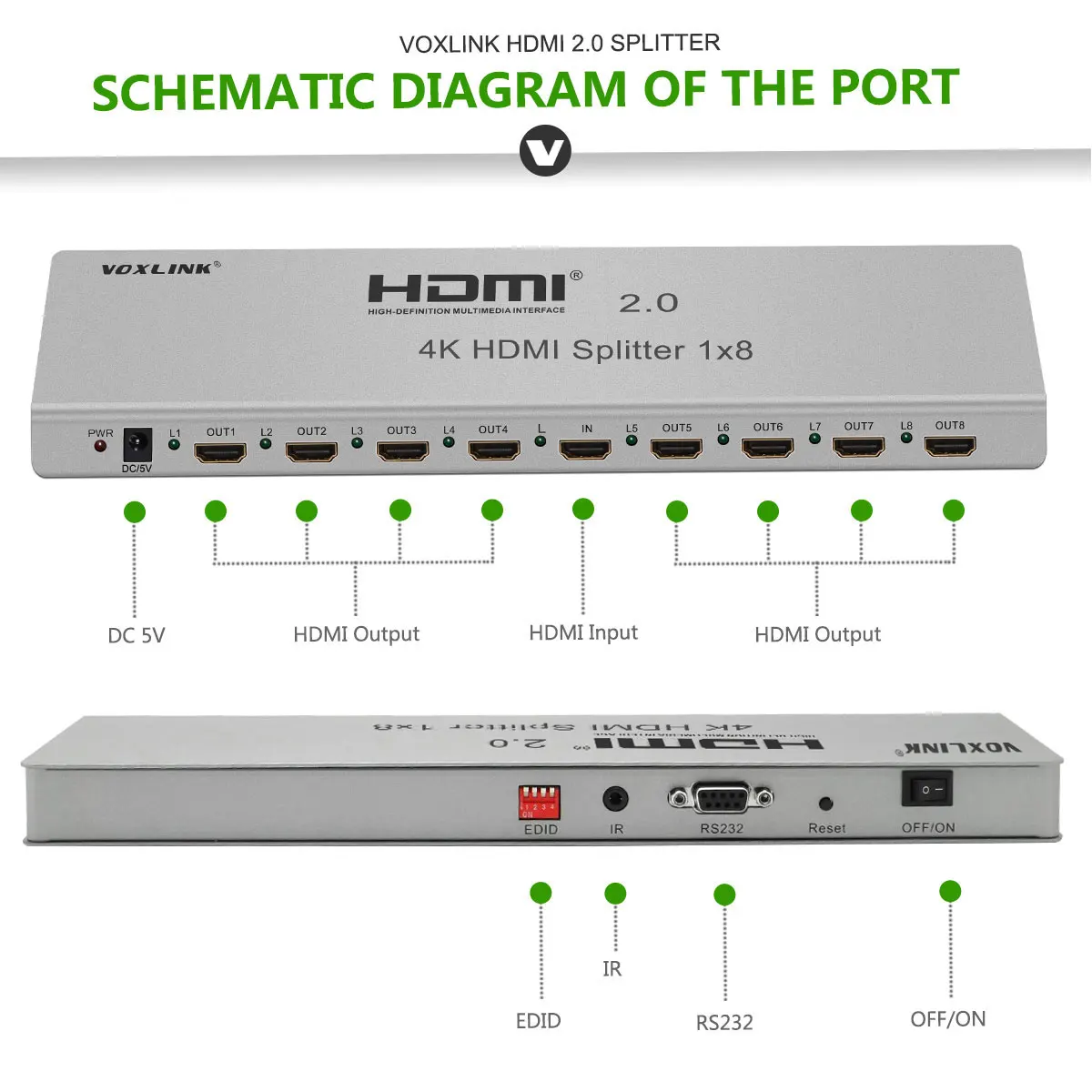

Product interface pictures


1:Power adapter indicator

2:5V Power Interface

3:LED Output indicator

4:HDMI output

5:LED Input Indicator

6:HDMI input

7:DIP switch,using for EDID management
8:IR TX Expansion Interface

9:RS232 port.serial port online upgrade

10:Reset button

11:Power switch

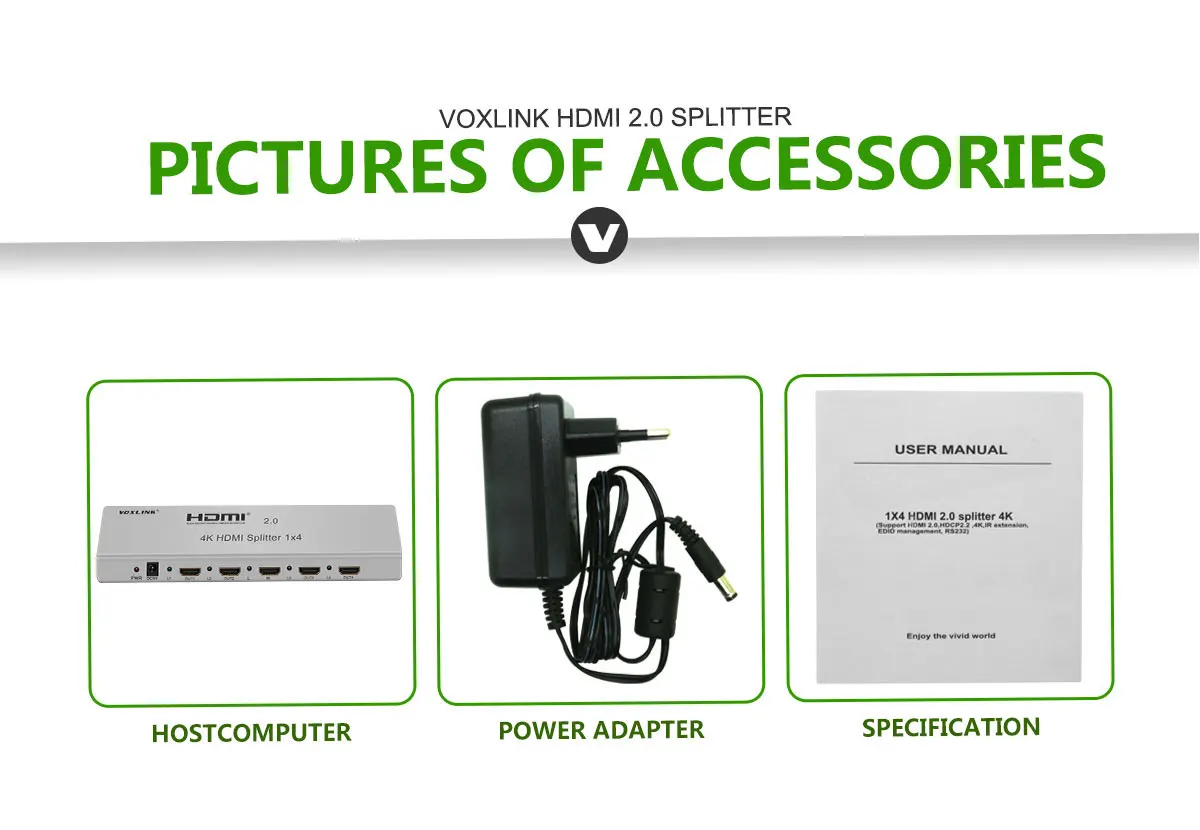

Package include :


1. HDMI splitter

2. Power adapter

3. User manual

4. HDMI repeater (optional)
