Item specifics
  • Connector B: HDMI
  • Outer Diameter: 85x55x12mm(L-W-H)
  • Connector Type: HDMI
  • Connector Color: Gold
  • Application: Multimedia
  • Shielding: Non-Shielded
  • Gender: Female-Female
  • Packing: Carton Box
  • Package: Yes
  • Type: Coaxial Cables
  • Connector A: HDMI
  • HDMI Vertiong: 1.4
  • Model Number: HDEX0002
  • Brand Name: VOXLINK
  • Video Resolutions: up to 1920x1080/60Hz
  • Plug Type: EU, US, UK, AU
  • Power adapter format: Input AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1.5A
  • Max working current: 500mA
  • SKU: HDEX0002
  • Color: White/Black
  • Power adaptor: 5V/1.5A
Product Description

1



VOXLINK HD 1080P HDMI 1.4a Wireless HDMI Extender for HDTV 3D Wifi HDMI Sender Transmitter Receiver up to 30m Support HDCP1.4 3D

2



Introduction

This HDMI Wireless extender uses Wireless HD technology which enables high-speed, high performance wireless communication among consumer electronics,computer and mobile devices. Working in the uncrowded 60 GHz frequency band,it is not subject to interference by WiFi signals,microwave radiation, or cordless phone. It combines high bandwidth capacity to robust error-correction,to deliver uncompressed HD video, multi-channel surround sound. It supports the highest resolution up to 1080p@60Hz,and the transmitting distance of wireless  can be up to 30m.
HTB1olmbMpXXXXbLXVXXq6xXFXXXt

Features
Ø Support HDMI 1.4a version


Ø Support 3D video format

Ø Support HDCP1.4

Ø Support the highest resolution up to 1920x1080/60Hz

Ø Support the highest rate 1.485G and TMDS clock up to 148.5Mhz

Ø Support uncompressed transmission

Ø Working in the 60 GHz frequency band, it is not subject to interference by WiFi signals, microwave radiation, or cordless phones


Ø The longest distance can be 30m when the resolution is 1080p

Ø 5V/1.5A power adaptor

Specifications:

HDMI resolution ………….. ………....... …up to 1920x1080/60Hz
Support audio format……….…….….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth…………………….148.5MHz
Max baud rate……………………..1.485Gbps
Input cable distance.……………….....….(1080p resolution) ≤8m AWG26 HDMI standard cable
Output cable distance………………….…(1080p resolution) ≤8m AWG26 HDMI standard cable
Max working current………………………….....500m A
Power adapter format………………..….input AC (50Hz, 60Hz) 100V-240V; output: DC5V/1.5A
Operating Temperature range………………………(-15 to +55)
Dimension (L x W x H)…………...…......…….85x55x12 (mm)

HTB1vkeBMpXXXXXuXXXXq6xXFXXXW

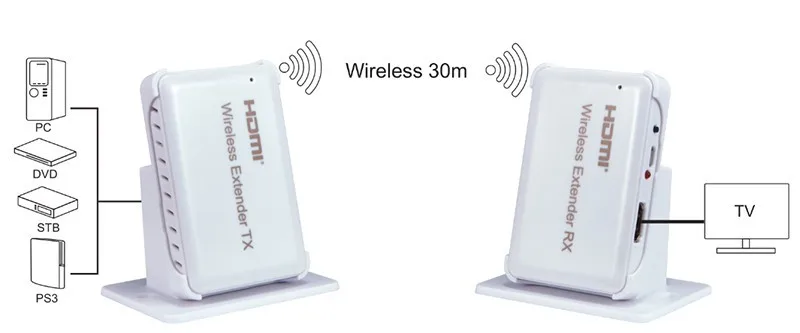

Connection and Operation:

1: Connect the HD source to the input of the wireless extender TX with 1 hdmi cable

2: Connect the output of the wireless extender RX to the displays with 1 hdmi cable

3: Connect 5V/1.5A power adapter to the TX and RX.

4. Reset button: it’s a reset key for system reset,you can press the button for about 10 seconds to restore factory Settings

Note:

1. It works in the uncongested 60 GHz frequency band, pls don’t put obstacles between the TX and RX to give play to the best performance.

2. TX and RX should be matched to use, when you make the TX and RX to restore factory setting, it will complete matching automatically.

3
8

Package include :

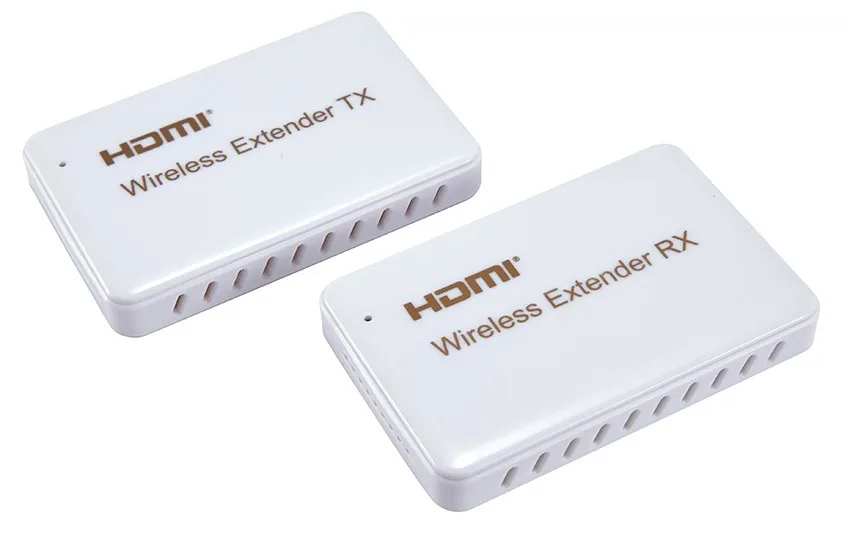

1. HDMI Transmitter & HDMI Receiver
2. Power adapter
3. User manual





Packaging Details
  • Unit Type: piece
  • Package Weight: 0.49kg (1.08lb.)
  • Package Size: 20cm x 10cm x 5cm (7.87in x 3.94in x 1.97in)
