Item specifics
  • Packing: Carton Box
  • Package: Yes
  • Gender: Female-Female
  • Connector A: HDMI
  • Connector B: HDMI
  • Model Number: 012
  • Type: Speakon
  • Application: Multimedia
  • Brand Name: EMK
  • Shielding: Non-Shielded
  • Connector Type: HDMI
  • Gender: Female-Female
Product Description
Description:

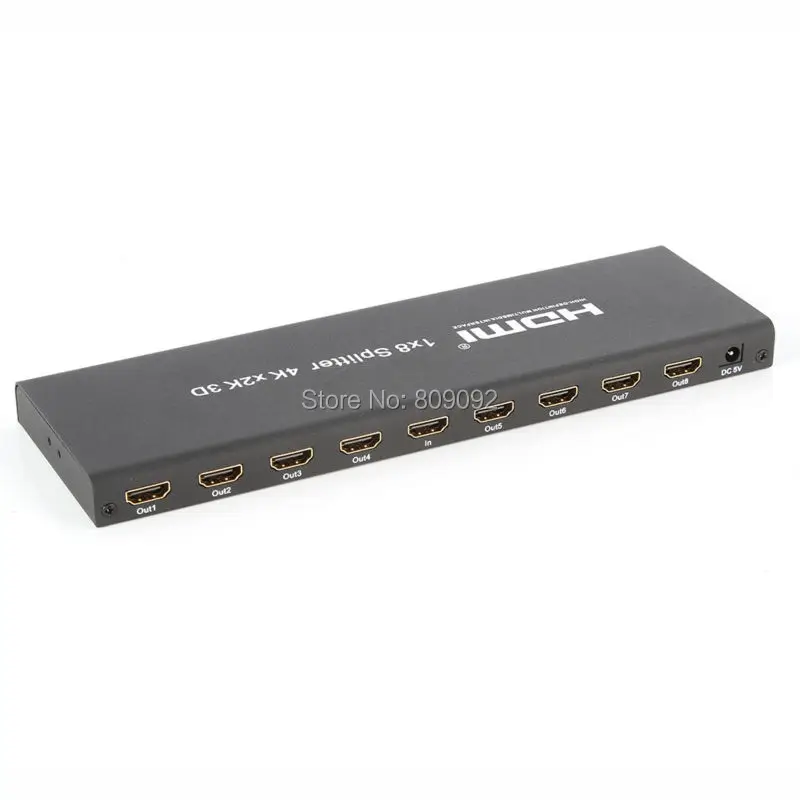

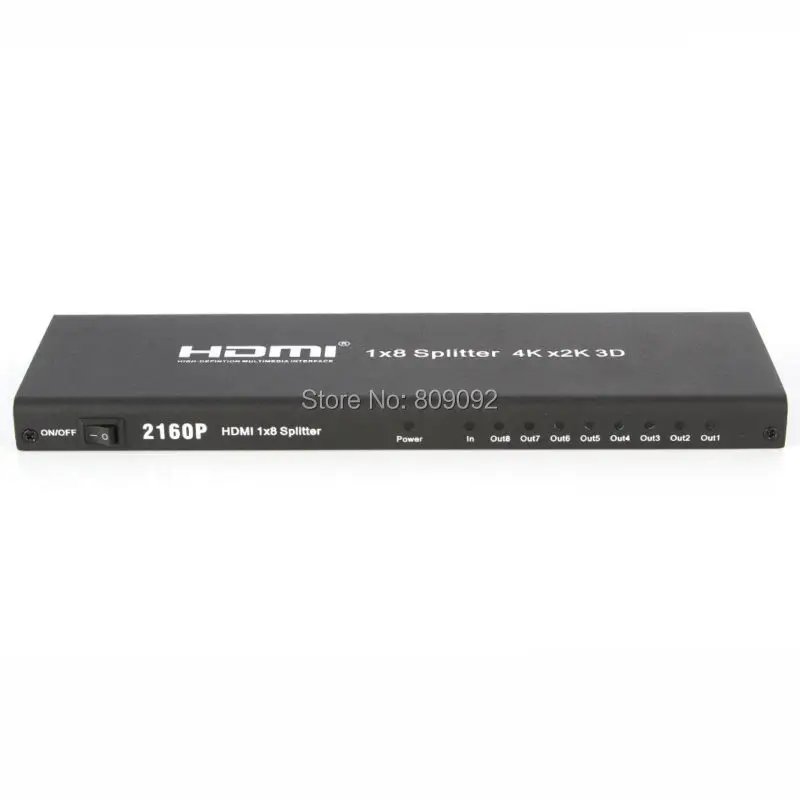

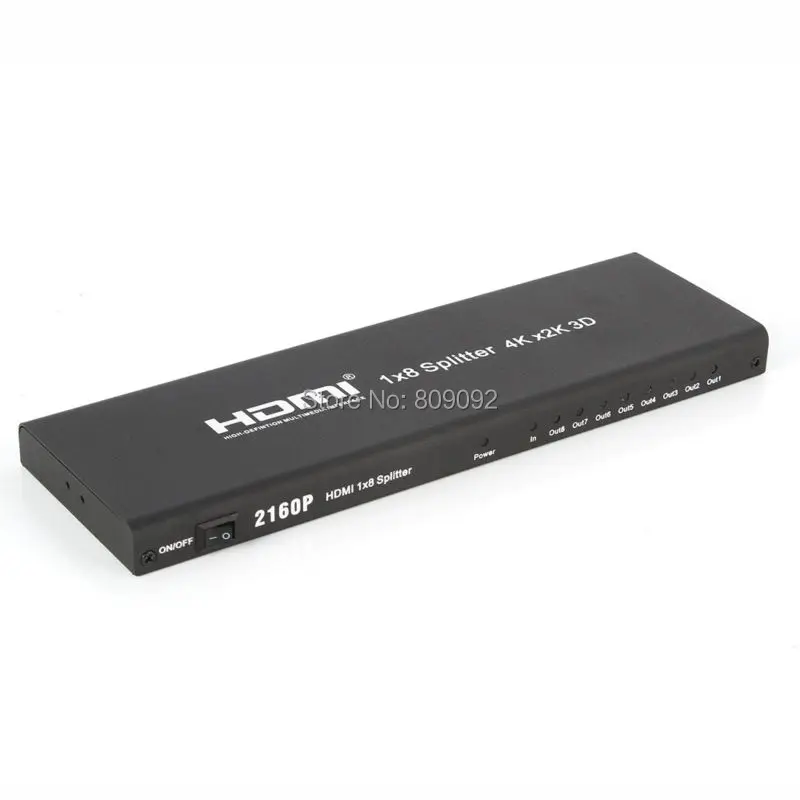

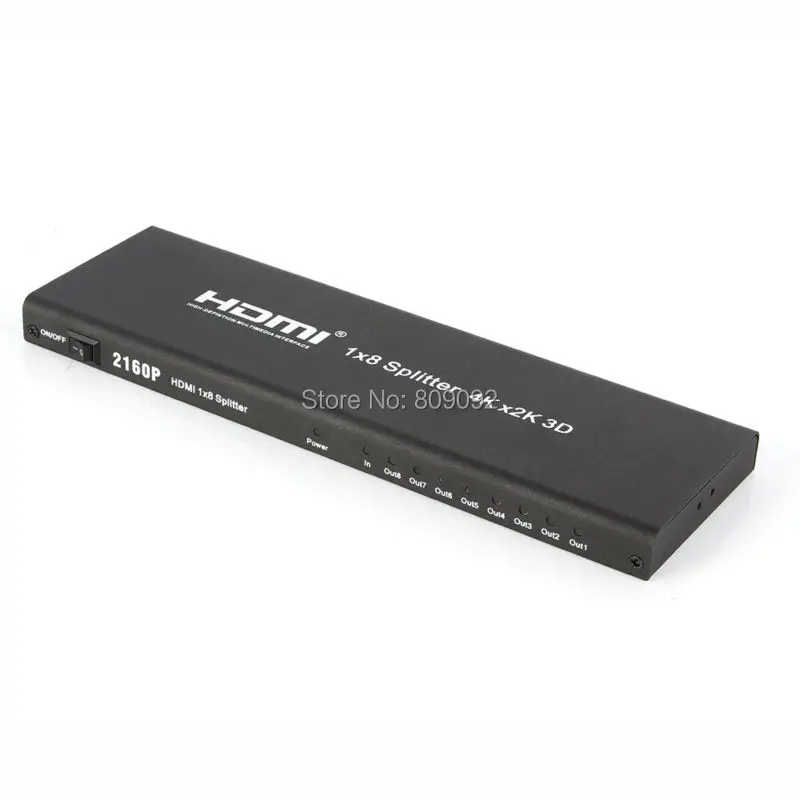

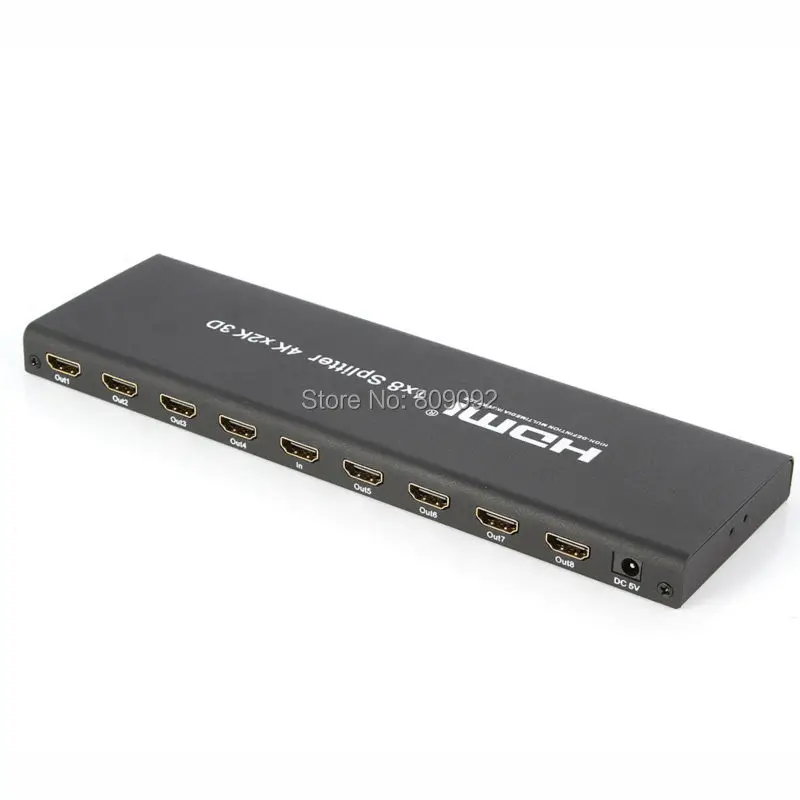

The 1x8 HDMI splitter uses a single HDMI source, accessing to multiple HDMI sinks, The splitter allows one HDMI devices to be split easily to eight HDMI compatible monitors or projectors. The splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The HDMI resolution up to 4K x 2K/30Hz.

Features:
Support HDMI 1.4b
Support 3D
Support HDMI resolution up to 4K x 2K /30Hz
Support the max baud rate of 3.0G and max bandwidth of 300MHz
Support deep color 8/10/12 bit
Support input up to 15 meters AWG24 HDMI standard cable length, output up to 25 meters AWG24 HDMI standard cable length
Displaying single source, multi-output high-definition signal source from DVD player A/V receiver, set-top box

LY303 (9)LY303 (8)LY303 (7)LY303 (3)
Specification:
HDMI version: HDMI 1.4b
HDMI resolution: 4k x 2k /30Hz
Support video color format: 8/10/12bit deep color
Support audio format: DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Max bandwidth: 300Hz
Max baud rate: 3.0Gbps
Input cable distance: ≤15m AWG24 HDMI standard cable
Output cable distance: ≤25m AWG24 HDMI standard cable
HDMI input: 1 HDMI
HDMI output: 8 HDMI
Max working current: 1.8A
Power adapter format: Input AC (50Hz, 60Hz): 100V-240V; Output DC5V/3A
Operating temperature range: -15 to 55 degree centigrade
Operating humidity range: 5 to 90%RH (no condensation)

LY303 (6)LY303 (5)LY303 (4)LY303 (1)
Package includes:

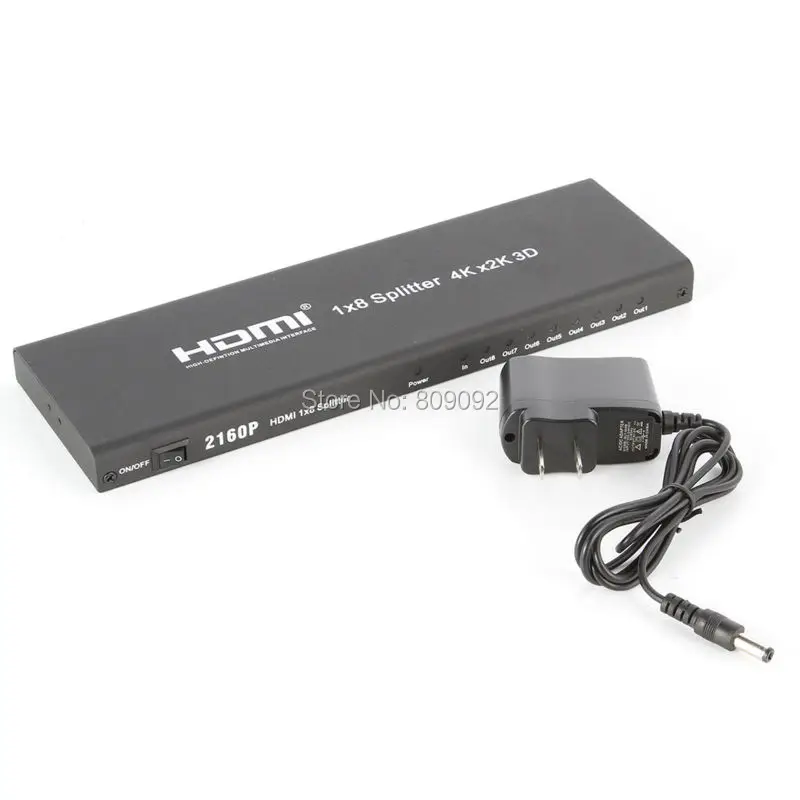

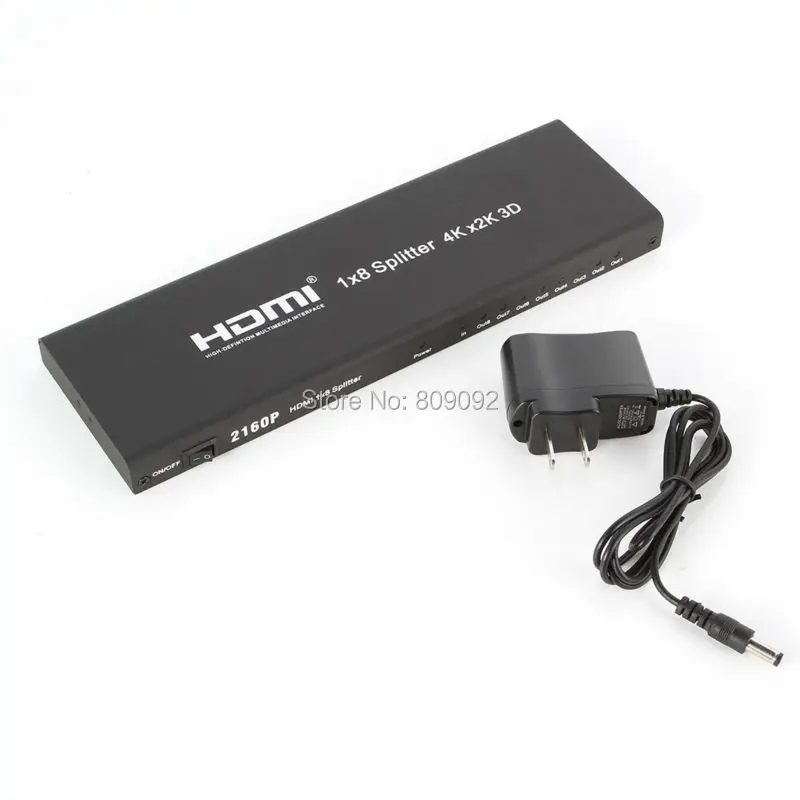

1 x HDMI 1X8 Splitter
1 x Power adapter



Packaging Details
  • Unit Type: piece
  • Package Weight: 0.8kg (1.76lb.)
  • Package Size: 28cm x 12cm x 5cm (11.02in x 4.72in x 1.97in)
