Report item
Item specifics
  • Application: Projector,DVD Player,Multimedia,Television,Camera,TV BOX,Monitor,Computer
  • Connector B: HDMI
  • Type: Audio Extension Cord,HDMI Cables
  • Packing: Polybag
  • Shielding: Non-Shielded
  • Brand Name: MiraBox
  • Package: Yes
  • Model Number: HSV891W
  • Gender: Female-Female
  • Connector A: HDMI
  • Bundle: Bundle 1
  • Feature: None
  • Outer Diameter: wireless hdmi extender
  • Product name : wireless hdmi extender 5.8GHZ
  • HDMI resolution: 1080P@60Hz
  • Indoor extend distance: 150~300m
  • Outdoor extend distance: 3000m
  • 3.5mm audio output: 60mW
  • Voltage: 5~12V/1A
  • Size of unit: 12.3*6.4*2.5cm
Product Description

1080P Wireless HDMI Extender 5.8GHZ Support Max 3KM Outdoor HDCP Transmission Wireless Transmitter And Receiver HSV891W



Notes:

    We are original vendor.
     We only sale the products we developed and manufactured.
     We are not only providing products, we also providing ODM/OEM service and solutions.
Your new ideas and requirement are always welcomed.


Introduction

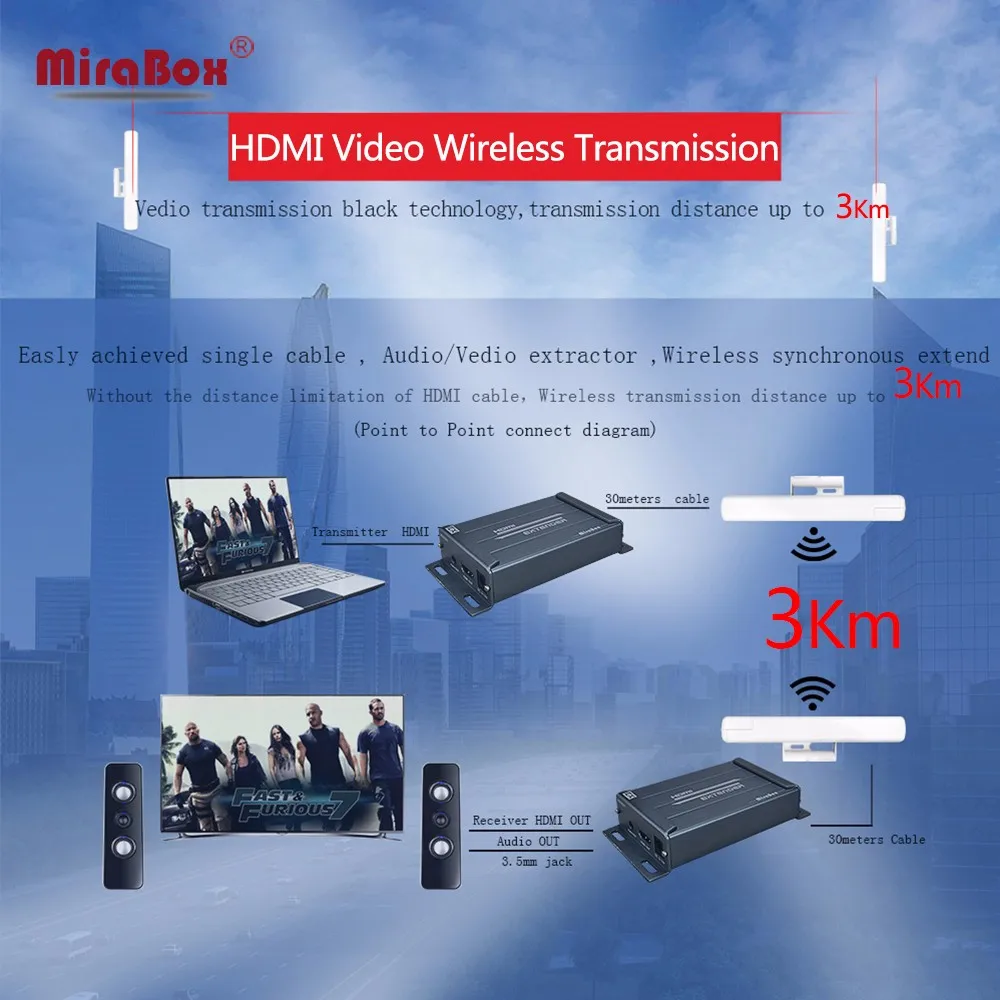

The HSV891W Wireless HDMI Extender set combines HSV891 and wireless unit to provide point to point wireless long range HDMI transmit function. The maxim outdoor transmit range could reach 3000meters ( based on the wireless environment, such as background noise, interference, etc.)
2

Features

1. Transmit HDMI signal from source device to display device up to 150~300meters(max) wirelessly indoor or 3000meters(max) outdoor

2. Support indoor and outdoor long distance video transmission.

3. Flexible design for multi usage. Customer could use HSV891 for 150meter wired transmission or combine wireless unit for long range wireless transmission.

4. Easy to install. No need for external power supply, just need one cat5 cable between HSV891 and the wireless unit. Cable length could reach 30meters.



Specification

  • HDMI signal: Full compatible with HDCP
  • Transport protocol: M-JPEG
  • Support resolution: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60H
  • Transmit distance: 150m~300m indoor(max) or 3000m outdoor(max)
  •  Please noted that the maxim distance could reach in an ideal environment. In field applications, the actual range affected by background noise, in band interference, etc.
  •
  • Working temperature: 0°C-60°C
  • Power supply: POE by HSV891
  • Enclosure material: Aluminum
  • Product dimension: 195.4x137.5x30.8mm(L*W*H)*2pcs
  • Adapter voltage: 100-240V
  • Weight: 1326g
  • Color: Black
  • 3.5mm audio extractor output: 60mWTHD<0.1% SNR 110dB3.
  • Comply with IEEE-568B
  • Supports resolution upt to 1080p FULLHD
  •
Package Content:  ( in bubble bag)
  • 1 x HDMI extender TX sender
  • 1 x HDMI extender RX receiver
  • 2 x DC5V 1A power adapter
  • 1 x  User manual
  •





wireless hdmi extender

wireless hdmi extedner-1

wireless hdmi extedner-1 (3)wireless hdmi extedner-1 (4)wireless hdmi extedner-1 (5)wireless hdmi extedner-1 (6)wireless hdmi extedner-1 (7)wireless hdmi extedner-1 (8)wireless hdmi extender 19
