Item specifics
  • Application: Projector,DVD Player,Multimedia,Television,TV BOX,Monitor
  • Connector B: HDMI
  • Model Number: HDSP0059
  • Feature: HMDI1.4
  • Shielding: Non-Shielded
  • Packing: Carton Box
  • Package: Yes
  • Gender: Female-Female
  • Connector A: HDMI
  • Type: HDMI Cables
  • Brand Name: VOXLINK
  • Type: 2X2 HDMI Switcher Splitter
Product Description





aeProduct.getSubject()





Full HD 1080P 4K*2K HDMI V1.4 Switch 2X2 HDMI Switcher Splitter with Remote Control for HDTV DVD PC PS3


aeProduct.getSubject()

aeProduct.getSubject()



2X2 HDMI Switcher/Splitter

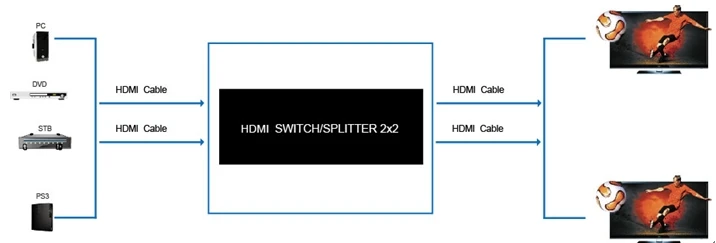

This 2x2 HDMI Switcher/Splitter can connect two HD signal sources with two HD display terminals, it allows two HDMI signals to be split or switched to two HDMI compatible monitors or projectors. And it can amplify your HDMI signals at the same time.

This two singal sources can be switched freely via button or remote control. The HDMI Switcher/Splitter 2x2 can support full HD video format, highest resolution 3840x2160/30Hz

aeProduct.getSubject()

Features :

l     Support HDMI1.4b

l     Support 3D

l     Support highest video resolution 3840x2160/30Hz

l     Support 3.2Gbps data rate and tmds clock up to 320MHz

l     Support 8/10/12 bit deep color

l     Support AWG26 HDMI standard cable, input up to 15 metres, output up to 25 metres(resolution ≤1080p)

l     Support AWG26 HDMI standard cable, input up to 12 metres, output up to 15 metres(resolution4k)

l     Support single high definition display and multiple output HD signal sources, such as DVD Players, A/V receiversand Set Top Boxes

l     IR Remote Control for operational flexibility and easy control

l     DC5V/1A power supply

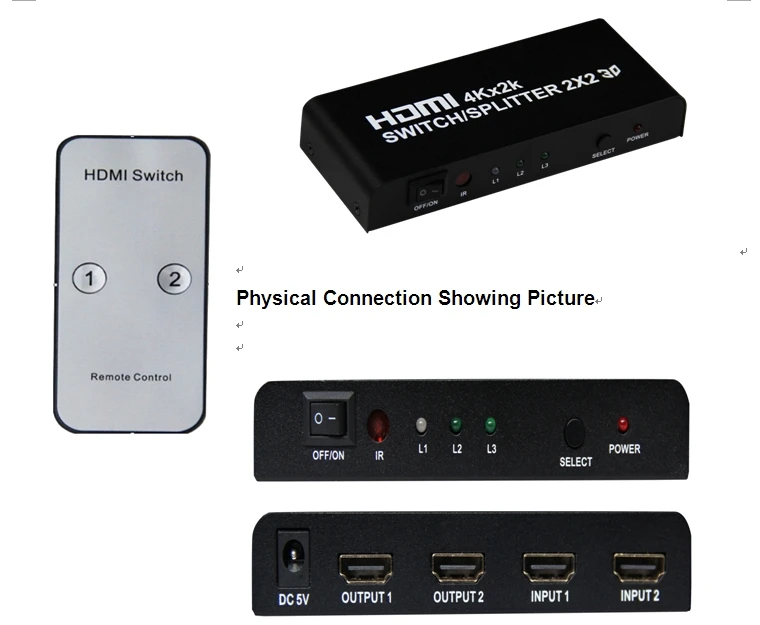

Product Pictures:

aeProduct.getSubject()









IR Remote Control:

1) Press the key 1 to switch to the input 1, L1 indicator turns red



2) Press the key 2 to switch to the input 2, L1 indicator turns blue



Specifications :

HDMI version   ……………………………………………………...……………….. HDMI 1.4b

HDMI resolution ……………...............................................................Up to 3840x2160/30Hz

Support video format ……………………....................……..……...…  8/10/12 bit deep color

Support audio format…………….............…. DTS-HD/Dolby-trueHD/ DTS/Dolby-AC3/DSD

Max bandwidth…………………………………………………………………………….320MHz

Max baudrate……………….…….………………….…………………………………..3.2Gbps

Input cable distance.…………………………….(1080p resolution) ≤15m,(4K resolution)≤12m AWG26 HDMI standard cable

Output cable distance…………………………(1080p resolution) ≤25m,(4K resolution)≤15m AWG26 HDMI standard cable

HDMI Input Port....................................................................................................................2

HDMI Ouput Port..................................................................................................................2

Max working current…………………………………….……………………………….....500mA

Power adapter format........................Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………..……………… (-15 to +55℃)

Operating Humidity range.....................................................5 to 90%RH (No Condensation)

Dimension (L x W x H)  ……………………………….………………………128x53x20 (mm)

Weight….………………………………………………………..…….………………………140g

Operating and Connecting

1:  Connect HDMI source device and HDMI Switcher/Splitter input with two HDMI cables.

2:  Connect display and HDMI Switcher/Splitter output with two HDMI cables.

3:  Connect 5V/1Apower adapter to the HDMI Switcher/Splitter.

The Package includes:

 1. 2X2 HDMI Switcher/Splitter

   2. IR Remote Control

  3. 5V DC Power adapter

  4. User Manual
