  • Connector B: HDMI
  • Model Number: HSV831W
  • Application: Multimedia,Camera,Computer
  • Shielding: Non-Shielded
  • Brand Name: MiraBox
  • Packing: Carton Box
  • Package: Yes
  • Gender: Female-Female
  • Connector A: HDMI
  • Bundle: Bundle 1
  • Feature: None
  • Type: HDMI Cables
  • Outer Diameter: HSV831W H.264 Wireless HDMI Encoder
  • Product Name: H.264 Wireless HDMI Encoder
  • Video input: 1-channel, HDMI port, supports HDCP
  • Audio input: 1-channel, HDMI embedded audio
  • Network protocol: Support HTTP\RTSP\RTMP\UDP\Multicast\unicast
  • Stream code type: TS standard stream\Double stream
  • Configuration management: WEB configuration, Remote upgrade
  • Video frame rate: 30 frame
  • Audio coding: AAC/MP3 optional
  • Audio KBps: 64Kb/s~384Kb/s
  • Subtitle overlay: English

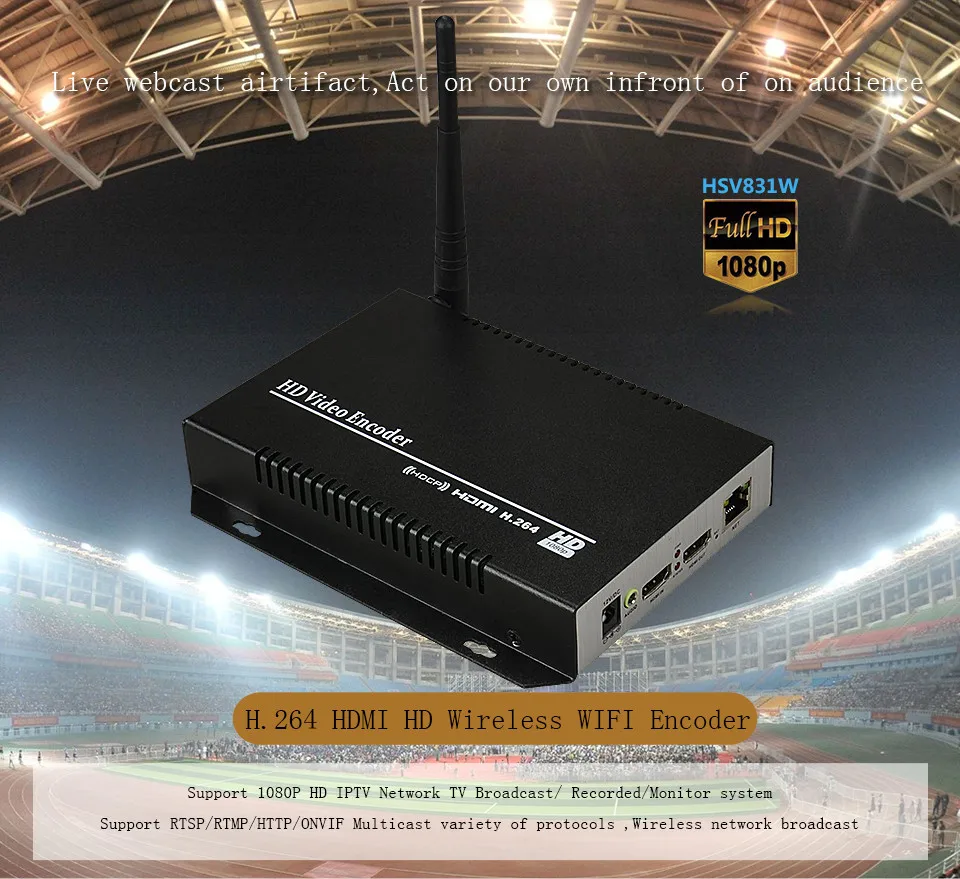

Product Description

H.264 Wireless HDMI Encoder Supports UDP, HTTP, RTSP and RTMP protocol, CBR/VBR/ABR rate control, IPTV Encoder wifi




Introduction


HDMI wireless transmitter is the latest development of hotpot, it is the highest resolution encoder in the market at present. It supports through the network transmission and WiFi wireless HDMI signal transmission at the same time. Only need to occupy a smaller bandwidth, can obtain high definition video signal. The product uses H.264 encoding format, coding of audio and video at the same time. Design of dual stream TS output, according to the different needs of each output bit resolution, the device has high integration, low cost advantages, is widely used in a variety of digital TV broadcasting system.

Main feature



1.Support wireless transmission
2. Fully supports the ONVIF protocol, which can support the NVR recording
3. We use standard H.264 encoding
4. Audio coding support MPEG1 Audio Layer 2
5. CBR/VBR/ABR rate control,16kbit/s~16Mbit/s
6. The network interface uses 1000M full duplex mode
7. Support UDP, HTTP, RTSP, RTMP protocol, support for unicast and multicast
8. Output video stream format: TS/VES/AES stream etc.
9. WEB interface, Chinese and English configuration interface optional
10. Support network management (WEB)
11. Support dual stream output
12. Support flow resolution settings
13. Support multi brand set-top box decoder
14. Support LAN WAN, wide area network LAN transmission

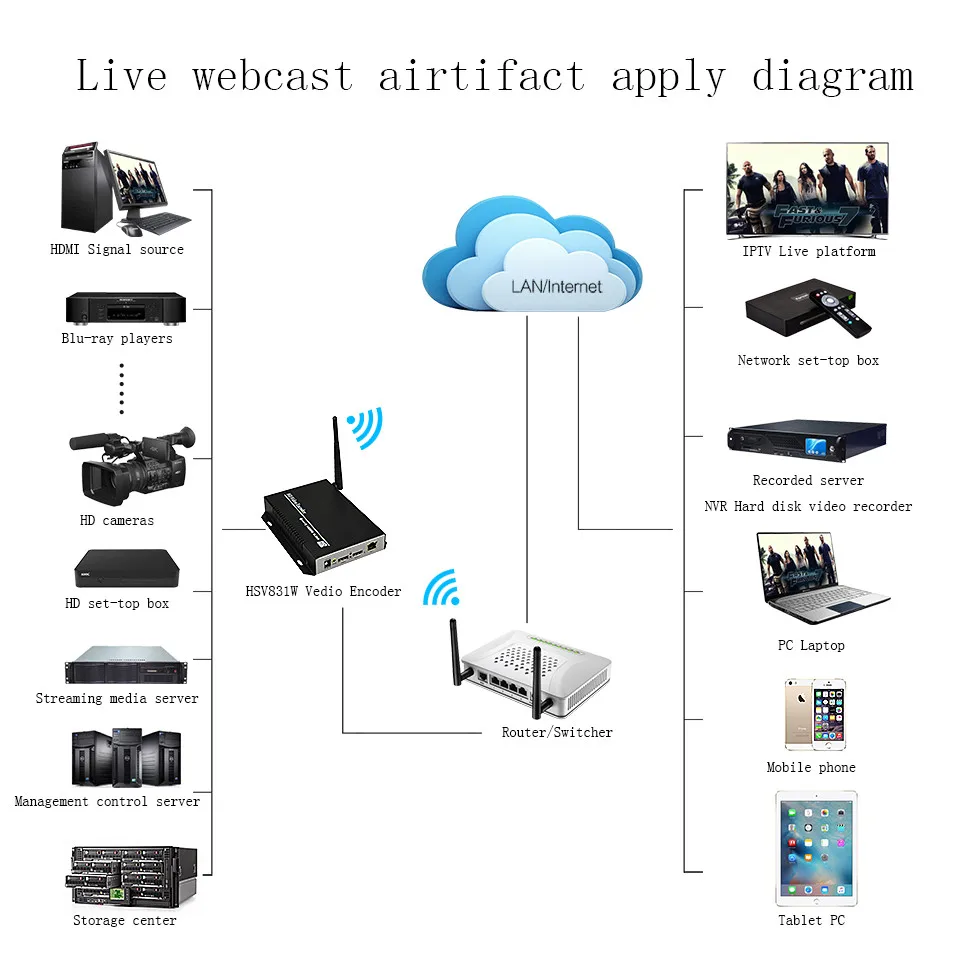

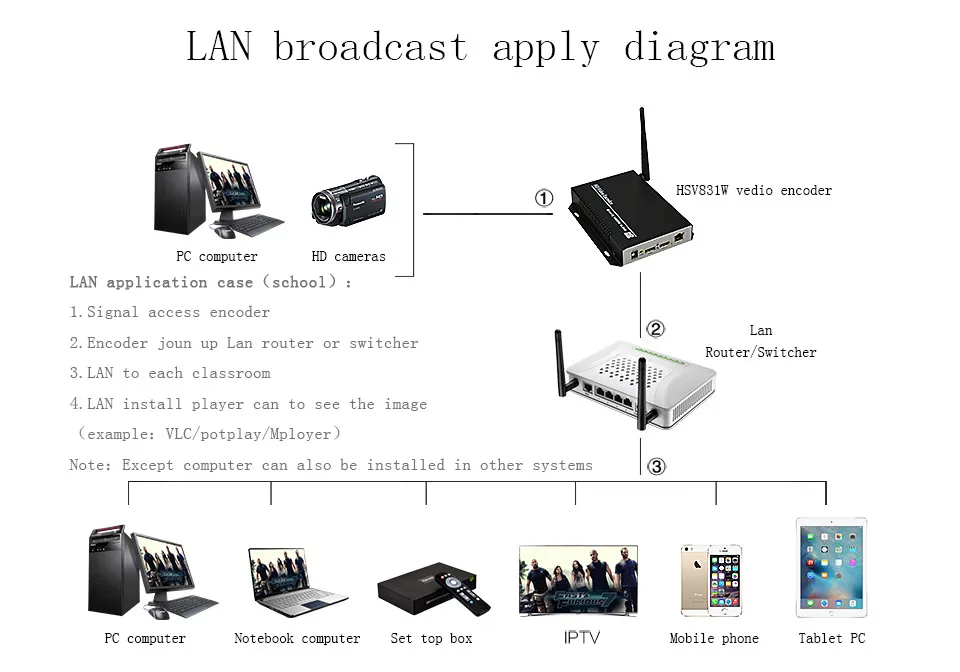

Connection sketch map

H.264 Wireless HDMI Encoder Supports UDP, HTTP, RTSP and RTMP protocol, CBR/VBR/ABR rate control, IPTV Encoder wifi

Field of application

1.Network TV HD collection system      2. Digital signage HD streaming server        3. Network conference system video capture
4.HD video capture card                          5. Cable TV system for hotel guest house    6. Operation room  recording and broadcasting system
7.Education broadcast, recording and broadcasting system  8. The digital high-definition broadcast, recording and broadcasting system
9. Access network monitoring platform, recording support

H.264 Wireless HDMI Encoder Supports UDP, HTTP, RTSP and RTMP protocol, CBR/VBR/ABR rate control, IPTV Encoder wifi H.264 Wireless HDMI Encoder Supports UDP, HTTP, RTSP and RTMP protocol, CBR/VBR/ABR rate control, IPTV Encoder wifi H.264 Wireless HDMI Encoder Supports UDP, HTTP, RTSP and RTMP protocol, CBR/VBR/ABR rate control, IPTV Encoder wifi H.264 Wireless HDMI Encoder Supports UDP, HTTP, RTSP and RTMP protocol, CBR/VBR/ABR rate control, IPTV Encoder wifi H.264 Wireless HDMI Encoder Supports UDP, HTTP, RTSP and RTMP protocol, CBR/VBR/ABR rate control, IPTV Encoder wifi H.264 Wireless HDMI Encoder Supports UDP, HTTP, RTSP and RTMP protocol, CBR/VBR/ABR rate control, IPTV Encoder wifi

Settings

Step1:Reset & initialization

Input the power supply to turn on encoder and hold a pin to press RST on the encoder for 10 seconds,it will be restarted and initialized. The default Route IP of dash board is  192.168.0.31 after initialization.

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

Step 2: Change the administrator’s computer IP (in case of WIN 7)

Set the administrator’s computer IP as : 192.168.0.* to avoid IP conflicting with dashboard IP 192.168.0.31. (mark “*” numbers range will be 0-254 except 31 )

Step 3: Login Dash board in IE

Enter 192.168.0.31 in URL address,

Default user Name: admin

Default password: admin

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

Step 4: Status Display

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoderH.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoderH.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

Note:

Input Status: Display input resolution

Mainstream Status: Display mainstream output resolution and access address

Secondary flow state: Display secondary stream output resolution and access address

Mainstream Live View: First, install the soft of VLC 2.2.1. Then you can browse the mainstream video through your PC

Secondary Stream Live View: First, install the soft of VLC 2.2.1. Then you can browse the secondary stream video through your PC

Step 5: Network Settings

Changing default dash board IP

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

Note: Default IP is 192.168.0.31. if IP setting is forgotten after changing. You can reset it to default IP follow step 1 above.

Step 6: Mainstream Encoding Setting

Main stream setting

  • Enc type: H.264 & H.265 is optional

  • Profile: baseline profile / main profile / high profile

  • Frame rate: 5-60 (when the input resolution is 1080i50, the frame rate will choose 25)

  • Bitrate mode: VBR / CBR

  • Group of picture: 30

  • Bitrate: 16-1200K (Network bandwidth setting)

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

Mainstream protocol setting

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

OSD Setting

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

Image quality settings

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

Sidestream Encoding Setting

Secondary stream Setting

  • Enc type: H.264 & H.265 is optional

  • Profile: baseline profile / main profile / high profile

  • Frame rate: 5-60 (when the input resolution is 1080i50, the frame rate will choose 25)

  • Bitrate mode: VBR / CBR

  • Group of picture: 30

  • Bitrate: 16-1200K (Network bandwidth setting)

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

Sidestream protocol setting

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

OSD Settings

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

Note: the same with the mainstream setting

RTMP(Real Time Streaming Protocol)settings

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoderH.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

Sep 1: Set H.264 level: baseline profile

Sep 1: Set RTMP protocol: Enable

Sep 1: Set RTMP sever IP

Sep 4: Set RTMP sever port

Sep 5: Set RTMP stream name

Sep 6: Sever test:

Install software: Flash+Media+Sever3.5 there’s no need for serial number when install, both user name and code are “1”.

start background software:

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

Open up the file of Flash Player: VideoPlayer.html

Type in : rtmp://ip address / rtmp / hdmi ,choose live, then can see the image or type in:rtmp://192.168.1.100:1935/live/hdmi  choose:LIVE  click:Play stream

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

HDMI OSD settings

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

Note: if no need for watermarks, space should be entered in “text”.

VLC decoding configuration

1.How to play video soruce via VLC

VLC software version NO: 2.0.1

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

Note:”/hdmi” can be removed under HDMI protocol streaming.

2.How to streaming video via VLC

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoderH.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoderH.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoderH.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoderH.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoderH.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoderH.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

Audio Setting

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

System settings

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder

H.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoderH.264 encH.264 Wireless HD HDMI Encoder for IPTV, Live Stream Broadcast,Support local loop out,works with wowza, youtube video encoder
