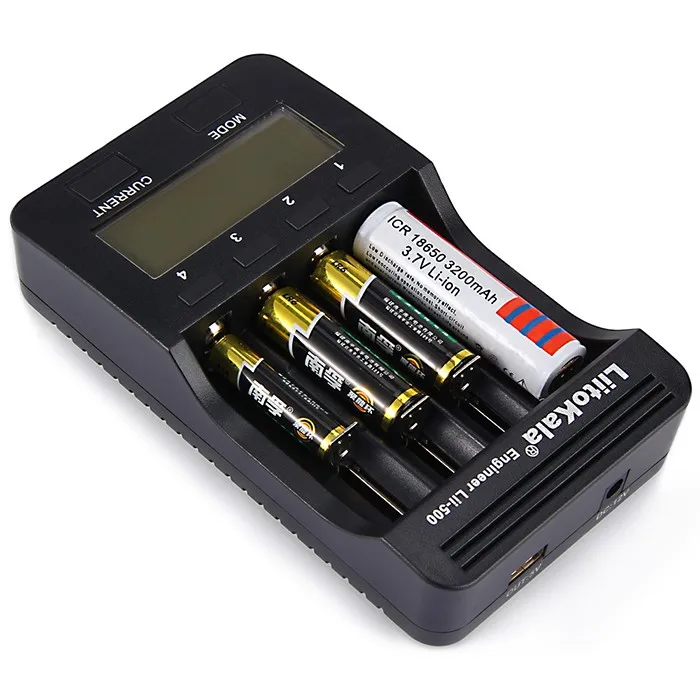

Lii-500 Ni-MH NI-CD LI-ion Battery Charger 3.7V 18650 18350 18500 17500 10440 26650 1.2V AA AAA 3V 5V output LCD smart charger
1 X lii-500 Charger
1 X 12v adapter
1 X Instructions
1. This device can only charge Cylindrical lithium-ion batteries and nickel-metal hydride batteries, rechargeable lithium iron phosphate battery;
2. Before use, please carefully refer to the instructions Note Recommendations battery charging current does not exceed the recommended charging current;
3. Chargers discharge may be hot, be careful not to burn;
4. Stop using, turn off the power, removing the battery;
5. It can be used only in a normal room.
6. This product test data for reference only, please consult a professional
Secondly, the characteristics of
1.4 kinds of charging current regulator (mA / 500mA / 700mA / 1000mA);
2. Various specifications (18650/26650 ...... / AA / AAA) into the battery charger;

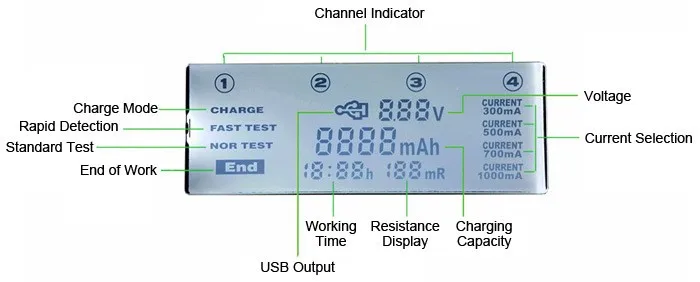

3. The charger eliminates the use of a separate LCD screen, Voltage (V) Current (MA) time (H) Capacity (mAh) Resistance (MR) Options, E ... view;
4. Under the charge mode, 4 channel work independently, you can select different charging current for charging and hunchong lithium-ion batteries and nickel-metal hydride battery.

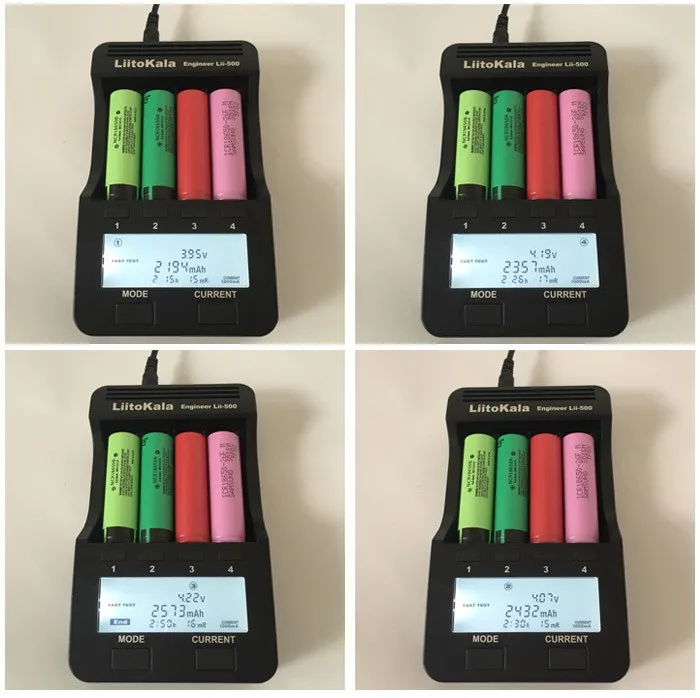

5. Under the Quick Test mode, 4 channels can quickly detect battery capacity, regardless of the lithium-ion batteries and nickel-hydrogen batteries, work independently. Rapid detection process of the battery capacity (1 category, 2 full) two steps
6. Neither the test mode, battery capacity is usually found three step process of (1 first charged, then discharged 2 and 3 refill), battery capacity detection process;
. 7. Charging and fast test / no test 3 modes can operate simultaneously; Independent set charge / fast detection capability / Normal capacity of detection;
8. Various protection functions: Overload and over discharge, short circuit, temperature, voltage of 0V function is activated, (& Delta; V and 0 & Delta; V), 1.65 B 2.2 B can not be charged, Intelligent recognition bad battery and reverse-battery detection protection.
9. With standard 5V / 1000mA USB output: 1 to 4 lithium batteries Lithium batteries USB output is completed, the product can not be nickel-metal hydride battery with USB output.
Thirdly, a description of keys

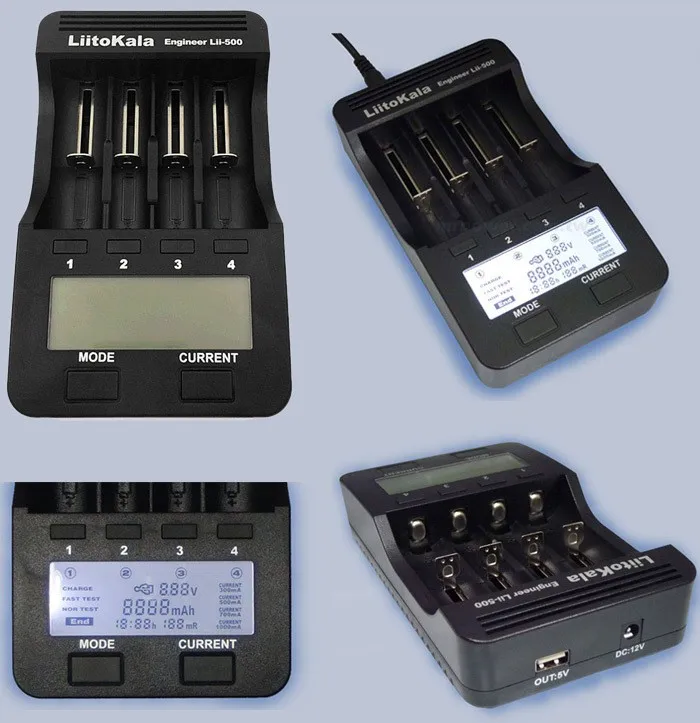

1. The charger has six buttons, key mode (mode), the current selection key (NAP), and view the data independently selected key (1234), the use of simple and convenient;
2. Hold down the Mode key in any case, and for 3 seconds to change the fee (Free) mode or quick test No test (capacity test) mode, then press again the corresponding function keys can be changed within 8 seconds, Current, Independent , Hunchong, capacity test, the selected function after 8 seconds in a working condition, in working condition can press (1234) To view the current (MA) / Capacity (mAh) / Voltage (V) / Time (H) / Resistance (MR) data reference.
Fourth, Mode Description:
1. When power is on the charger, battery charger all instant full brightness LCD screen when the battery is not placed in the display Null, if it is a bad battery will also be displayed in the Null;
2. Insert the battery charger, battery charger for three seconds or so to measure the internal resistance of the battery, after which the system automatically switches to charging mode (FREE), charger will automatically default charging current "500mA, in 8 seconds for the current selection Key (NAP) Select 300mA, 500mA, 700mA, 1000mA charging current lock system that you select will be charged in eight seconds if within 8 seconds, do not set, then the system will automatically default charging current 500MA, current and other functions in this time will not be changed if you want to change, change the mode of election of the Press;
3. In the charging mode (FREE) Within 8 seconds to change any of independent charging or other current selection, as well as various battery hunchong. Make a simple, 8 seconds, press the corresponding button battery 1234 Press the MODE button to change the mode, press the key to changing the current Independent, Hunchong, detection capacity, chosen after 8 seconds in the operation, attention to choose the size according to the current battery capacity charge, if not faster charging we recommend charging 500MA, This is the safest;

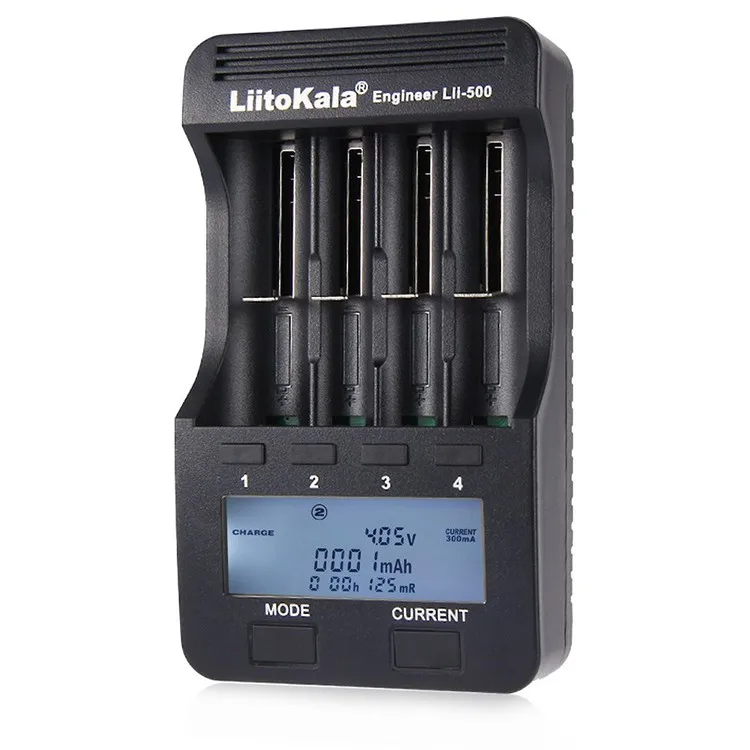

4. Charging Mode by pressing the keys, you can switch to view the 1234 power charge (mAh) / charging time (H) / internal resistance of the battery (MR) / charging current (MA), Voltage (V) 5 kinds of units, the battery is fully charged after the show (End of charge);

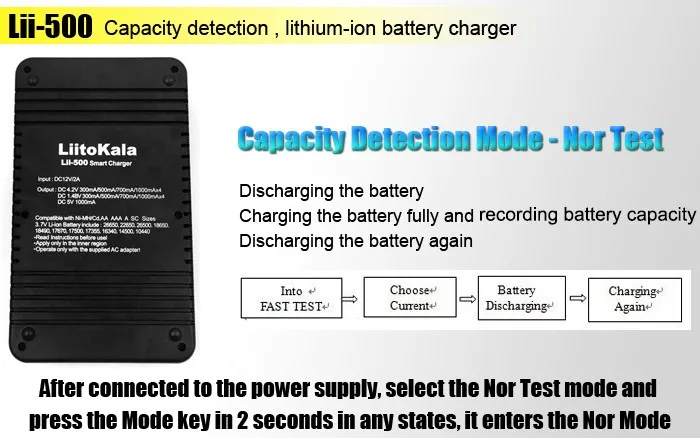

II. The capacity of the detection mode (Quick Test or Test) two types

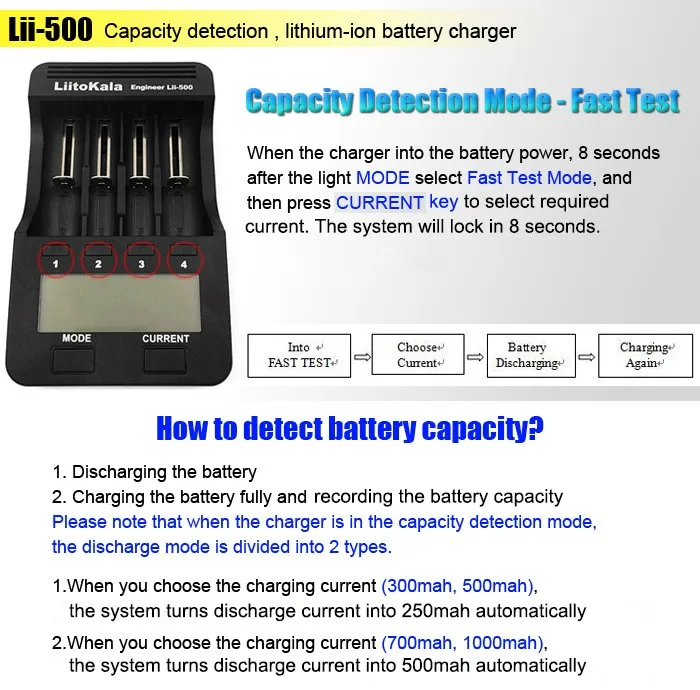

() Quick test (rapid capacity test mode)
1. When the power is turned back into the charger, 8 seconds Touch (Key Mode Mode) Select (quick test quick capacity test mode), then press (current selection key CURREN) Select System 8 seconds after locking your choice to work. Quick Reference Table Capacity test procedure
Quick test - enter selected discharge current battery recharge -
The first battery is low, then the battery is fully charged the batteries, to detect and record the capacity of the
